T1902102232-000

Active

TE Connectivity Raychem Cable Protection

HEAVY DUTY POWER CONNECTORS H10BPR-TS/GHC-2M32

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEAVY DUTY POWER CONNECTORS H10BPR-TS/GHC-2M32

Technical Specifications

Parameters and characteristics for this part

Specification	T1902102232-000

Connector Type	Hood
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H10B
Style	Side and Top Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size	Thread Size	Style	Connector Type	Ingress Protection	Lock Location
TE Connectivity Raychem Cable Protection T1902102232-000	125 °C	-40 °C	H10B	M32	Side and Top Entry	Hood	IP65 - Dust Tight Water Resistant	Screw Locks on Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 17.54

General part information

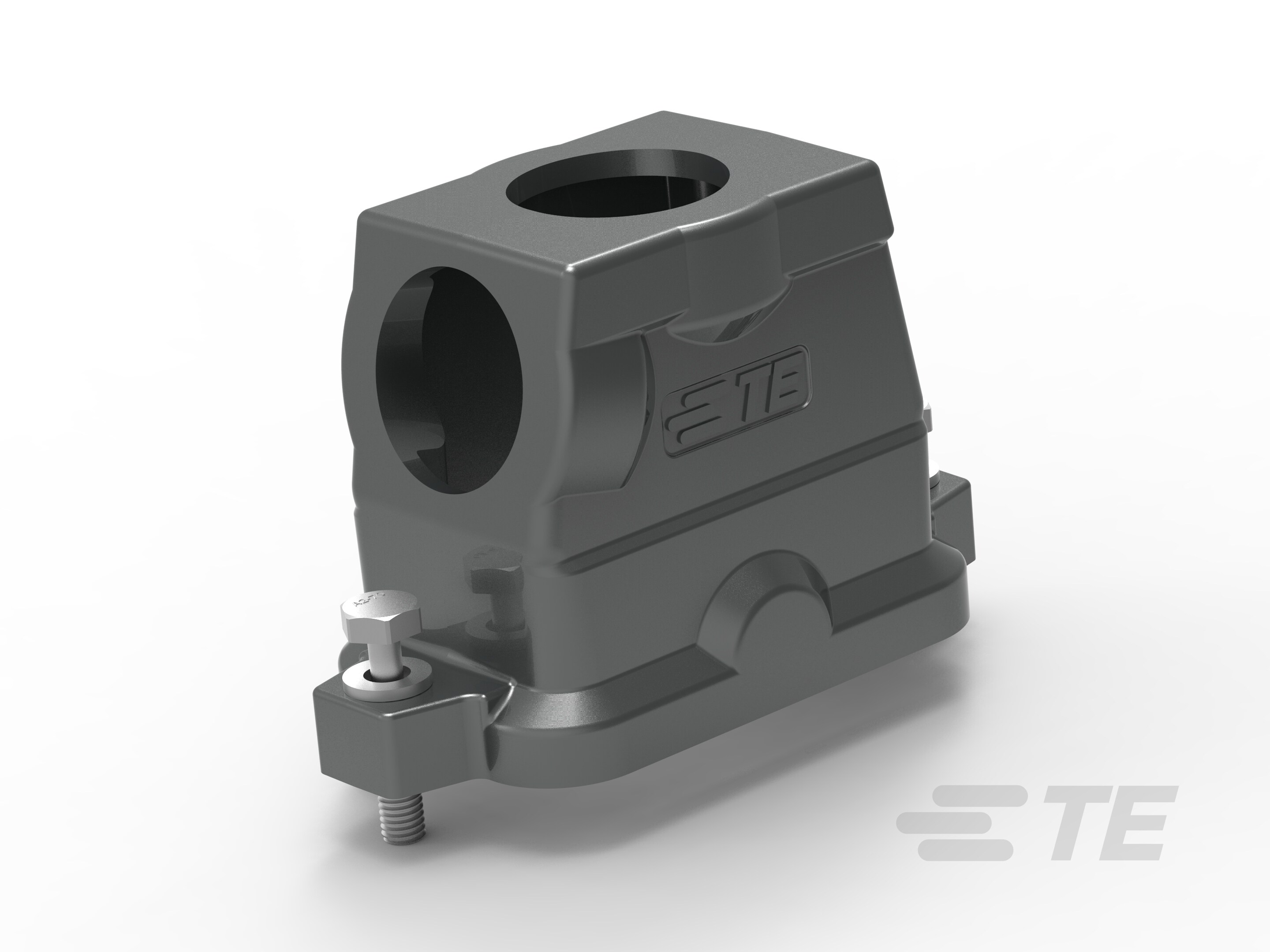

Hood Connector Side and Top Entry M32 H10B IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
