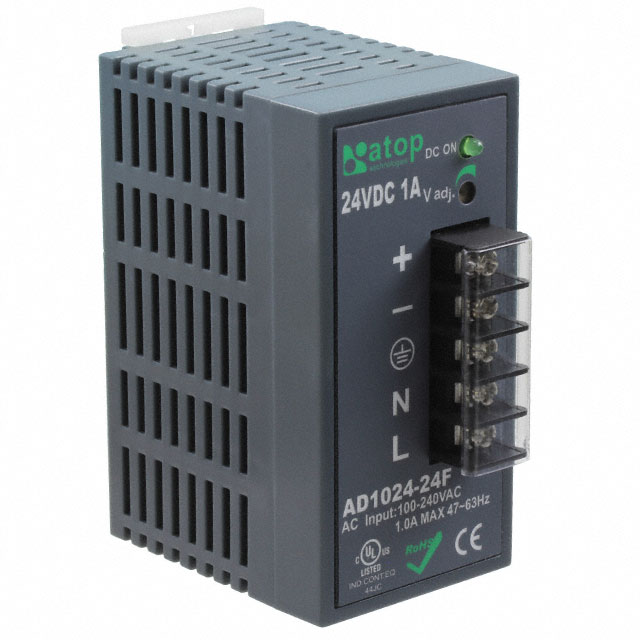

AD1024-24F

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 24W

Search across all available documentation for this part.

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 24W

Technical Specifications

Parameters and characteristics for this part

AC/DC DIN RAIL SUPPLY 24V 24W

Part	Applications	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Efficiency	Number of Outputs	DC Voltage - Input (Max) [Max]	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency
ATOP Technologies AD1024-24F	ITE (Commercial)	1 A	24 W	2.97 in	96 mm	45 mm	3.78 "	1.77 "	75.5 mm	24 V	120 V	50 °C	-20 C	AC or DC	83 %	1	370 V	Adjustable Output	100 VAC	240 VAC	CB, CE, cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.00

General part information

AC/DC DIN RAIL SUPPLY 24V 24W
