Technical Specifications
Parameters and characteristics for this part

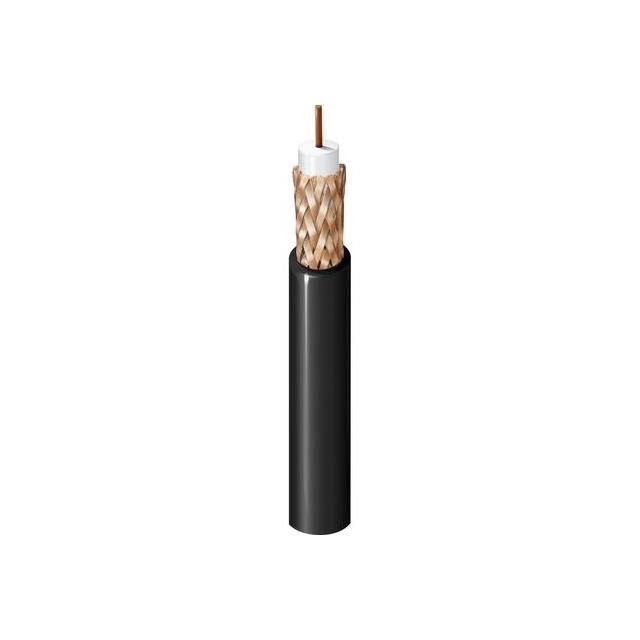

| Specification | 643948 010U500 |
|---|---|
| Cable Group | RG-59 |
| Cable Type | Coaxial - Plenum |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 3.43 mm |
| Dielectric Diameter [diameter] | 0.135 in |
| Dielectric Material | Foam Fluorinated Ethylene Propylene (FFEP) |
| Impedance | 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 4.88 mm |
| Jacket (Insulation) Diameter [diameter] | 0.192 in |
| Jacket Color | Black |
| Length | 152.4 m |
| Length | 6000 in |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 84 |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 0.68 | |
| 1000 | $ 0.64 | |||
| 1500 | $ 0.62 | |||
| 2500 | $ 0.60 | |||
Description
General part information
643948 Series
Coaxial - Plenum Cable 20 AWG RG-59 500.0' (152.40m) 75 Ohms
