A3CCH-6406G

Active

TE Connectivity AMP Connectors

IDC CABLE - AKC64H/AE64G/AKC64H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3CCH-6406G

Active

TE Connectivity AMP Connectors

IDC CABLE - AKC64H/AE64G/AKC64H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A3CCH-6406G	A3CCH Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Features	Polarizing Key	Polarizing Key
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3 ft
Length	-	457.2 - 914.4 mm
Number of Positions	64	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.95
		10	$ 12.39
		25	$ 11.50
		50	$ 10.87
		100	$ 10.27
		250	$ 9.54
		500	$ 9.02
		1000	$ 8.64

A3CCH Series

IDC CABLE - AKC14H/AE14M/AKC14H

Part	Cable Termination	Length	Length	Length	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Color	Number of Rows	Features	Length [x]	Length [x]	Number of Positions
TE Connectivity AMP Connectors A3CCH-1406M	IDC	152.4 mm	6 "	0.5 '	Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	14	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key
TE Connectivity AMP Connectors A3CCH-2606M	IDC	152.4 mm	6 "	0.5 '	Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	26	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key
TE Connectivity AMP Connectors A3CCH-6406G	IDC	152.4 mm	6 "	0.5 '	Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	64	0.1 in	2.54 mm	0.05 "	1.27 mm		2	Polarizing Key
TE Connectivity AMP Connectors A3CCH-1406G	IDC	152.4 mm	6 "	0.5 '	Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	14	0.1 in	2.54 mm	0.05 "	1.27 mm		2	Polarizing Key
TE Connectivity AMP Connectors A3CCH-4436M	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	44	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key	3 ft	914.4 mm
TE Connectivity AMP Connectors A3CCH-2418M	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	24	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key	1.5 ft	457.2 mm
TE Connectivity AMP Connectors A3CCH-6036M	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	60	0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key	3 ft	914.4 mm
TE Connectivity AMP Connectors A3CCH-1636G	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded		0.1 in	2.54 mm	0.05 "	1.27 mm		2	Polarizing Key	3 ft	914.4 mm	16
TE Connectivity AMP Connectors A3CCH-1636M	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded		0.1 in	2.54 mm	0.05 "	1.27 mm	Multiple, Ribbon	2	Polarizing Key	3 ft	914.4 mm	16
TE Connectivity AMP Connectors A3CCH-5018G	IDC				Socket to Socket	Gold	15 µin	0.38 µm	Unshielded	50	0.1 in	2.54 mm	0.05 "	1.27 mm		2	Polarizing Key	1.5 ft	457.2 mm

Description

General part information

A3CCH Series

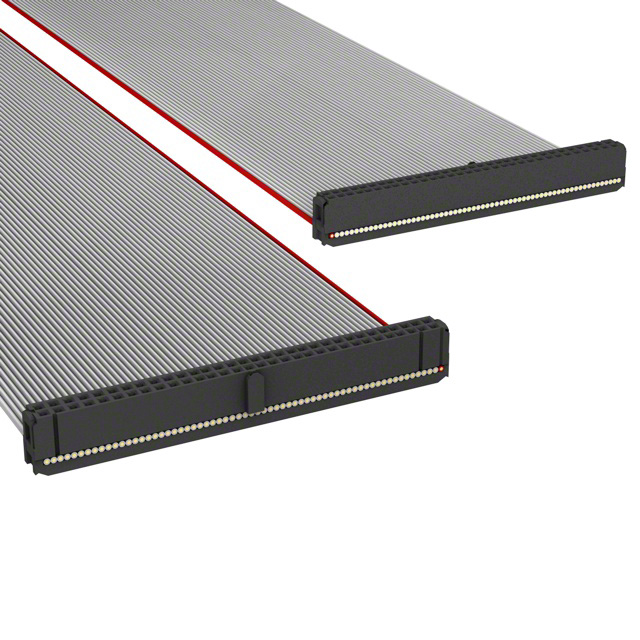

64 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
