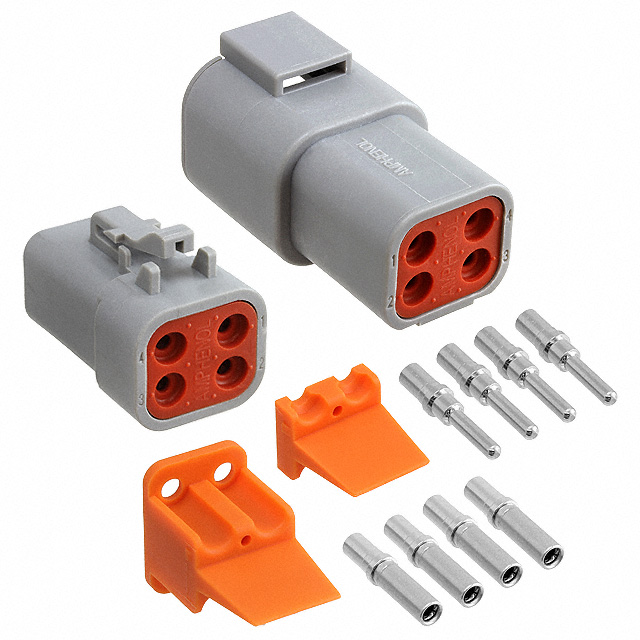

ATP4PS-CKIT
ActiveMcGill Microwave Systems
CONN PLUG&RCPT 4P CRIMP 12-14AWG
ATP4PS-CKIT
ActiveMcGill Microwave Systems
CONN PLUG&RCPT 4P CRIMP 12-14AWG
Description
General part information
ATP4PS Series
4 Position Rectangular Plug and Receptacle Connector Crimp 12-14 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP4PS-CKIT |
|---|---|
| Cable Termination | Crimp |
| Color | Gray |
| Connector Type | Receptacle, Plug |
| Contact Type | Female Socket, Male Pin |
| Fastening Type | Latch Lock |
| Features | Wedge Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Type | Discrete |
