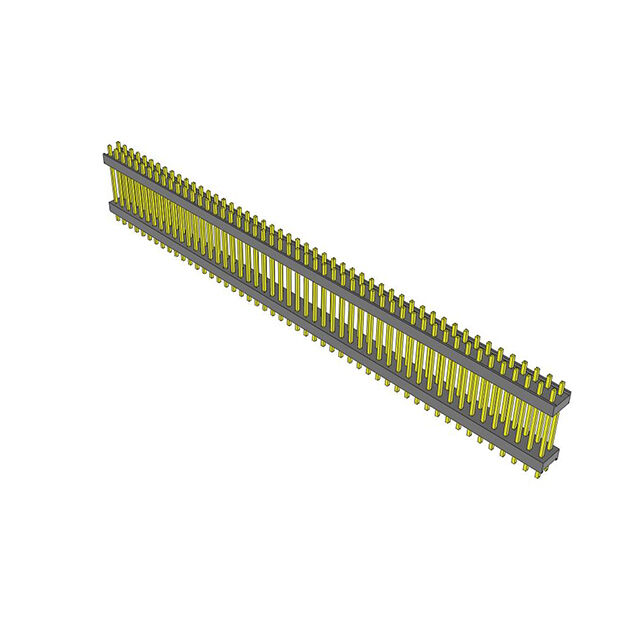

DW-50-10-L-D-630

Active

Samtec Inc.

CONN BOARD STACKER HDR 100 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

DW-50-10-L-D-630

Active

Samtec Inc.

CONN BOARD STACKER HDR 100 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-50-10-L-D-630

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	21.082 mm
Length - Overall Pin [x]	0.83 in
Length - Post (Mating) [x]	0.09 in
Length - Post (Mating) [x]	2.286 mm
Length - Stack Height [x]	16.002 mm
Length - Stack Height [x]	0.63 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-50-10 Series

Part	Row Spacing [x]	Row Spacing	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Color	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin [x]	Length - Overall Pin	Termination	Length - Tail [x]	Length - Tail [x]	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-50-10-T-D-450	0.1 in	2.54 mm	100	0.27 in	6.858 mm	2.54 mm	0.1 in	Tin	Black	2	0.45 in	11.43 mm	0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole
Samtec Inc. DW-50-10-T-S-445			50	0.275 in	6.985 mm	2.54 mm	0.1 in	Tin	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	11.303 mm	0.445 in
Samtec Inc. DW-50-10-G-S-650			50	0.07 in	1.778 mm	2.54 mm	0.1 in	Gold	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	16.51 mm	0.65 in	0.25 Ám	10 Áin
Samtec Inc. DW-50-10-L-D-630	0.1 in	2.54 mm	100	0.09 in	2.286 mm	2.54 mm	0.1 in	Gold	Black	2			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	16.002 mm	0.63 in	0.25 Ám	10 Áin
Samtec Inc. DW-50-10-F-S-590			50	0.13 in	3.302 mm	2.54 mm	0.1 in	Gold	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	14.986 mm	0.59 in	0.076 Ám	3 Áin
Samtec Inc. DW-50-10-G-S-375			50	0.345 in	8.763 mm	2.54 mm	0.1 in	Gold	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	9.525 mm	0.375 in	0.25 Ám	10 Áin
Samtec Inc. DW-50-10-G-S-330			50	0.39 in	9.906 mm	2.54 mm	0.1 in	Gold	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	8.382 mm	0.33 in	0.25 Ám	10 Áin
Samtec Inc. DW-50-10-F-S-500			50	0.22 in	5.588 mm	2.54 mm	0.1 in	Gold	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	12.7 mm	0.5 in	0.076 Ám	3 Áin
Samtec Inc. DW-50-10-T-S-490			50	0.23 in	5.842 mm	2.54 mm	0.1 in	Tin	Black	1			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	12.446 mm	0.49 in
Samtec Inc. DW-50-10-S-D-500	0.1 in	2.54 mm	100	0.22 in	5.588 mm	2.54 mm	0.1 in	Gold	Black	2			0.83 in	21.082 mm	Solder	0.11 in	2.794 mm	Through Hole	12.7 mm	0.5 in	0.76 µm	30 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 8.75
		10	$ 8.42
		25	$ 8.04
		50	$ 6.98
		100	$ 6.64
		500	$ 6.64
Digikey	Bulk	1	$ 15.37

Description

General part information

DW-50-10 Series

100 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
