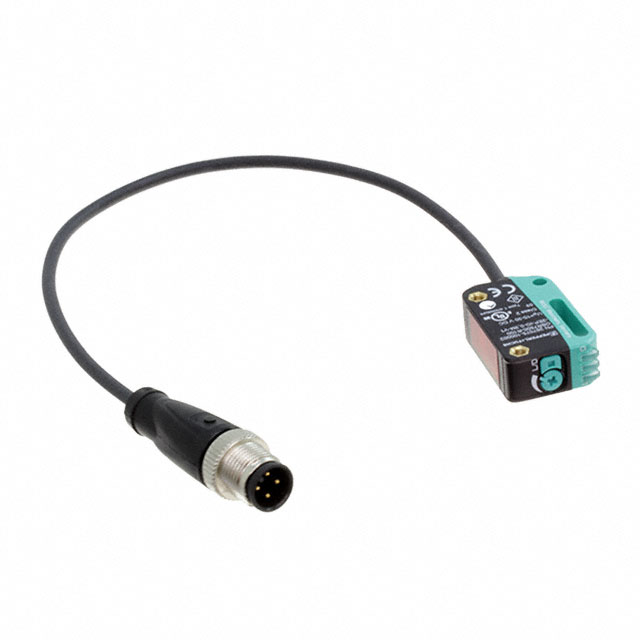

Specification	OBR7500-R100-2EP-IO-0.3M-V1

Current - Supply	25 mA
Mounting Type	Chassis Mount
Output Configuration	Light-ON - Selectable, Dark-ON, PNP, Selectable, Light-ON, PNP - Dark-ON, NPN
Package / Case	Module
Sensing Distance	295.28 "
Sensing Light	Infrared
Sensing Method	Retroreflective
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

OBR7500 Series

Part	Current - Supply	Mounting Type	Package / Case	Sensing Light	Output Configuration	Sensing Distance	Sensing Method	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Pepperl+Fuchs, Inc. OBR7500-R100-2EP-IO-0.3M-V1	25 mA	Chassis Mount	Module	Infrared	Dark-ON Light-ON Light-ON - Selectable NPN PNP PNP - Dark-ON Selectable	295.28 "	Retroreflective	10 VDC	30 VDC

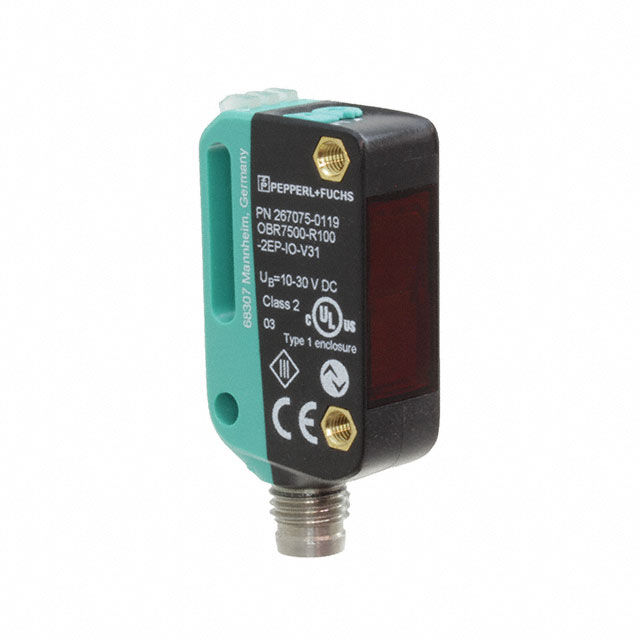

Pepperl+Fuchs, Inc. OBR7500-R100-2EP-IO-V31	25 mA	Chassis Mount	Module	Infrared	Dark-ON Light-ON Light-ON - Selectable NPN PNP PNP - Dark-ON Selectable	295.28 "	Retroreflective	10 VDC	30 VDC
