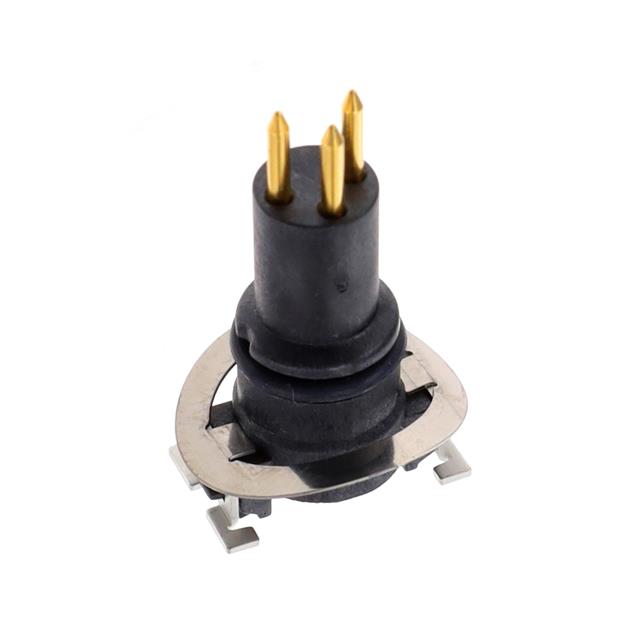

M8S-03PMMT-EE0001

Active

Amphenol LTW

M SERIES, M8, 3A, 03 PINS, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M8, 3A, 03 PINS, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M8S-03PMMT-EE0001

Applications	Telecommunications, Marine, Industrial
Color	Black
Connector Type	Insert, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Features	Board Guide, Ground
Ingress Protection	IP68, IP65
Insert Material	Thermoplastic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size - Insert	M8-3
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VAC

Part	Voltage Rating	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Insert Material	Color	Termination	Current Rating (Amps)	Shielding	Applications	Features	Contact Material	Contact Finish - Mating	Mounting Type
Amphenol LTW M8S-03PMMT-EE0001	60 VAC	Insert Male Pins	M8-3	-55 °C	125 °C	IP65 IP68	Thermoplastic	Black	Solder	3 A	Shielded	Industrial Marine Telecommunications	Board Guide Ground	Copper Alloy	Gold	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Insert, Male Pins Solder
