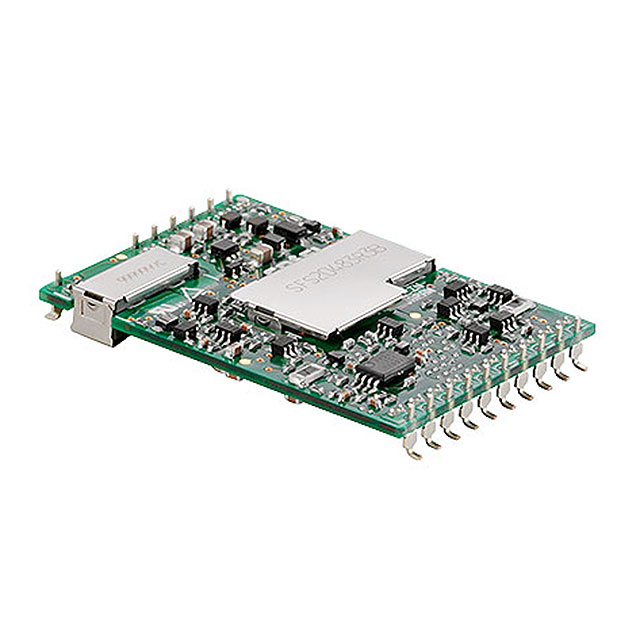

SFS20483R3B
ObsoleteCosel USA, Inc.
DC DC CONVERTER 3.3V 20W
SFS20483R3B
ObsoleteCosel USA, Inc.
DC DC CONVERTER 3.3V 20W
Description
General part information
SFS20483 Series
Isolated Module DC DC Converter 1 Output 3.3V 6A 36V - 76V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SFS20483R3B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 6 A |
| Efficiency | 90 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 17 Leads |
| Package Name | 20-SMD Module |
| Power (Watts) | 20 W |
| Size / Dimension Height | 0.2 in |
| Size / Dimension Length | 1.52 in |
| Size / Dimension Width | 1.07 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 76 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 3.3 V |
