6772112321F

Active

DIALIGHT

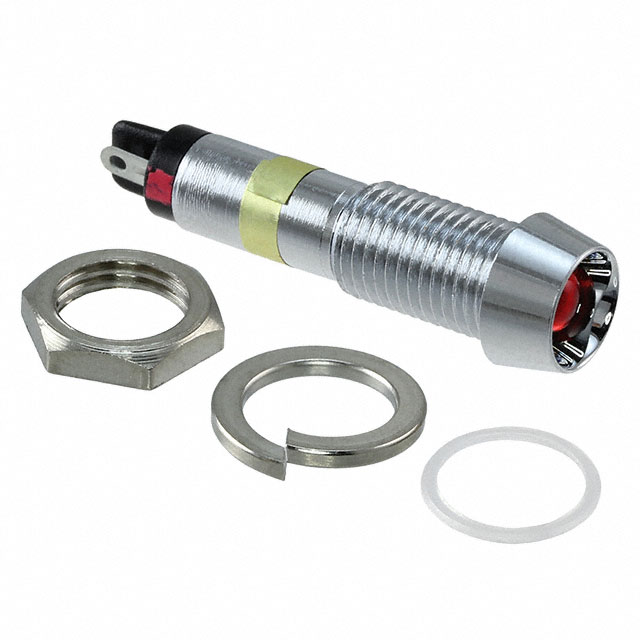

7MM HR/R PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HR/R PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6772112321F	6772112 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	925 mcd	925 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	624 nm

7MM HR/R PMI-6VDC W/O-RING

Part	Millicandela Rating	Type	Ingress Protection	Lamp Color	Current	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Shape	Ratings	Voltage	Termination Style	Viewing Angle	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions
DIALIGHT 6772112321F	925 mcd	LED	IP66, NEMA 4X	Red	30 mA	7.11 mm	0.28 "	Round	DC	6 V	Solder Lug
DIALIGHT 6772112341F		LED	IP66, NEMA 4X	Red	30 mA			Round	DC	24 V	Solder Lug	25 °	624 nm	7.2 mm	0.28 in
DIALIGHT 6772112331F		LED	IP66, NEMA 4X	Red	30 mA			Round	DC	12 V	Solder Lug	25 °	624 nm	7.2 mm	0.28 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 6V 30mA Solder Lug
