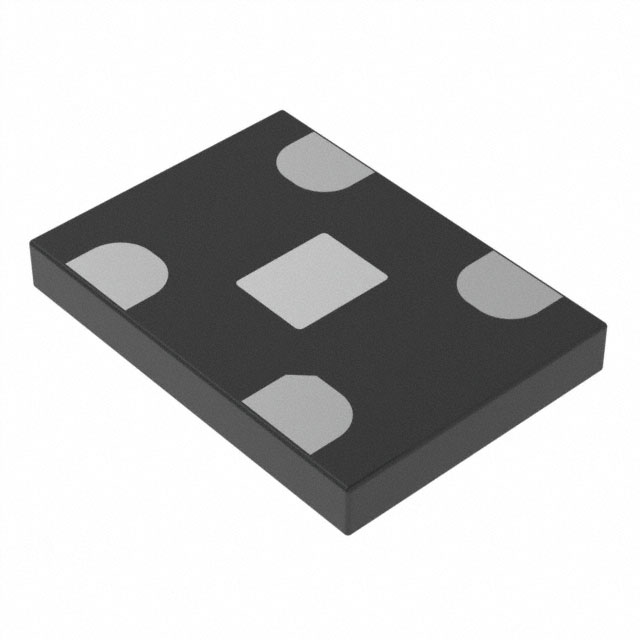

SIT3701AC-42-25F-89.088000Y

SiTime

MEMS OSC VCXO 89.0880MHZ LVCMOS

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 4.02

Description

General part information

SIT3701 Series

89.088 MHz VCXO LVCMOS, LVTTL Oscillator 2.5V 4-SMD, No Lead Exposed Pad

Documents

Technical documentation and resources

Datasheet

Manufacturing Notes for SiTime Products

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT3701AC-42-25F-89.088000Y	SIT3701 Series

Absolute Pull Range (APR)	-	240 ppm
Base Resonator	MEMS	MEMS
Frequency	-	24.576 - 100 MHz
Frequency Stability	25 ppm	20 - 50 ppm
Height - Seated (Max)	-	0.8 mm
Height - Seated (Max)	-	0.031 "
Height - Seated (Max) [Max]	0.039 "	0.039 "
Height - Seated (Max) [Max]	1 mm	1 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Output	LVCMOS, LVTTL	LVCMOS, LVTTL
Package / Case	4-SMD, No Lead Exposed Pad	4-SMD, No Lead, 4-SMD, No Lead Exposed Pad
Size / Dimension [x]	7 mm	2.5 - 7 mm
Size / Dimension [x]	0.276 "	0.098 - 0.276 in
Size / Dimension [y]	5 mm	2 - 5 mm
Size / Dimension [y]	0.197 "	0.079 - 0.197 "
Supplier Device Package	-	4-PQFN (2.5x2), 4-SMD (3.2x2.5)
Type	VCXO	VCXO
Voltage - Supply	2.5 V	2.5 - 3.3 V

SIT3701 Series

MEMS OSC VCXO 74.2500MHZ LVCMOS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Base Resonator	Frequency Stability	Type	Voltage - Supply	Frequency	Output	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package
SiTime SIT3701AI-32-33C-74.250000T	85 °C	-40 °C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	25 ppm	VCXO	3.3 V	74.25 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
SiTime SIT3701AC-42-25F-89.088000X	70 °C	-20 C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	2.5 V		LVCMOS, LVTTL	4-SMD, No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AI-12-33F-32.76800Y	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	32.768 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount			4-PQFN (2.5x2)
SiTime SIT3701AI-32-33C-54.000000T	85 °C	-40 °C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	25 ppm	VCXO	3.3 V	54 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
SiTime SIT3701AI-32-33I-8.192000T	85 °C	-40 °C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	25 ppm	VCXO	3.3 V		LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
SiTime SIT3701AC-31-33C-100.000000T	70 °C	-20 C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	20 ppm	VCXO	3.3 V	100 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
SiTime SIT3701AC-42-25F-89.088000Y	70 °C	-20 C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	2.5 V		LVCMOS, LVTTL	4-SMD, No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AI-82-33F-40.000000T	85 °C	-40 °C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	3.3 V	40 MHz	LVCMOS, LVTTL	4-SMD, No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AI-12-33I-33.554430Y	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	33.55443 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
SiTime SIT3701AI-12-33I-33.554430T	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	33.55443 MHz	LVCMOS, LVTTL	4-SMD, No Lead	Surface Mount
