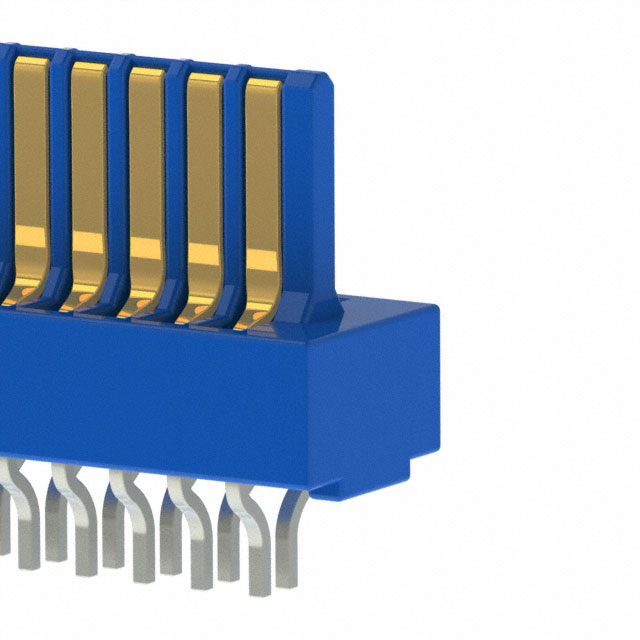

EBC50MMRN

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 100POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC50MMRN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Card Extender
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	100
Number of Positions/Bay/Row [custom]	50
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC50 Series

...

Part	Card Type	Gender	Contact Finish	Read Out	Mounting Type	Flange Feature	Flange Feature	Flange Feature	Contact Material	Color	Termination	Number of Rows	Card Thickness	Card Thickness	Material - Insulation	Contact Type	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions EBC50DCSD	Non Specified - Dual Edge	Female	Gold	Dual	Through Hole	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	Phosphor Bronze	Blue	Solder	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Hairpin Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C
Sullins Connector Solutions EBC50DCMT-S288	Non Specified - Dual Edge	Female	Gold	Dual	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening			Phosphor Bronze	Blue	Wire Wrap	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Hairpin Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C	Card Extender
Sullins Connector Solutions EBC50HETS	Non Specified - Dual Edge	Female	Gold	Single	Through Hole	Side Mount Opening Unthreaded			Phosphor Bronze		Solder	1	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Cantilever		2.54 mm	0.1 in	50	10 Áin	0.25 Ám	125 °C	-65 ░C		0.125 in	3.18 mm
Sullins Connector Solutions EBC50HETI	Non Specified - Dual Edge	Female	Gold	Single	Through Hole	4-40 Threaded Insert Top Mount Opening			Phosphor Bronze		Solder	1	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Cantilever		2.54 mm	0.1 in	50	10 Áin	0.25 Ám	125 °C	-65 ░C
Sullins Connector Solutions EBC50DREF	Non Specified - Dual Edge	Female	Gold	Dual		Floating Bobbin Top Mount Opening			Phosphor Bronze	Blue	Solder Eyelet(s)	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Full Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C		0.116 in	2.95 mm
Sullins Connector Solutions EBC50DRAN	Non Specified - Dual Edge	Female	Gold	Dual	Through Hole Right Angle				Phosphor Bronze	Blue	Solder	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Full Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C
Sullins Connector Solutions EBC50DCST-S288	Non Specified - Dual Edge	Female	Gold	Dual	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening			Phosphor Bronze	Blue	Solder	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Hairpin Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C	Card Extender
Sullins Connector Solutions EBC50DETS	Non Specified - Dual Edge	Female	Gold	Dual	Through Hole	Side Mount Opening Unthreaded			Phosphor Bronze		Solder	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	Cantilever	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C		0.125 in	3.18 mm
Sullins Connector Solutions EBC50MMRN	Fits Female Edgecards	Male	Gold	Dual	Board Edge Straddle Mount				Phosphor Bronze	Blue	Solder	2	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)		50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C	Card Extender
Sullins Connector Solutions EBC50DRTN-S734	Non Specified - Dual Edge	Female	Gold	Dual	Through Hole				Phosphor Bronze	Blue	Solder	2	0.031 in	0.79 mm	Polybutylene Terephthalate (PBT)	Full Bellows	50	2.54 mm	0.1 in	100	10 Áin	0.25 Ám	125 °C	-65 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 10.98

Description

General part information

EBC50 Series

100 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm) Blue

Documents

Technical documentation and resources

No documents available
