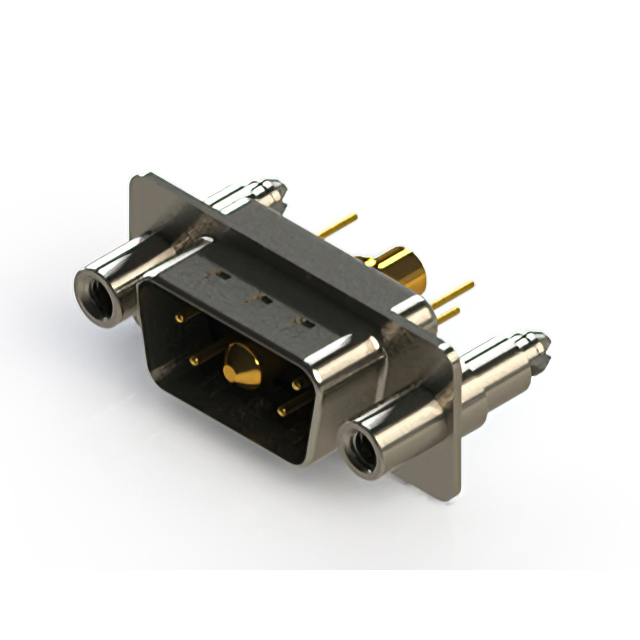

627-5W1-224-4TE

Active

EDAC Inc.

CONN D-SUB PLG 5POS PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-5W1-224-4TE

Active

EDAC Inc.

CONN D-SUB PLG 5POS PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-5W1-224-4TE

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder
Voltage Rating	125 VDC

627-5W1 Series

...

Part	Contact Finish Thickness	Voltage Rating	Connector Style	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Termination	Contact Type	Features	Mounting Type	Material Flammability Rating	Contact Finish	Current Rating (Amps)	Number of Rows	Color	Contact Material	Shell Size, Connector Layout	Flange Feature	Dielectric Material	Current Rating (Amps)	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-5W1-224-3N6	Flash	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold	5 A 30 A	2	Black	Copper Alloy	1 (DE E) - 5W1	4-40	Polyester Thermoplastic
EDAC Inc. 627-5W1-224-2NE	Flash	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold	5 A 20 A	2	Black	Copper Alloy	1 (DE E) - 5W1	M3	Polyester Thermoplastic
EDAC Inc. 627-5W1-224-3NE	Flash	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold	5 A 30 A	2	Black	Copper Alloy	1 (DE E) - 5W1	M3	Polyester Thermoplastic
EDAC Inc. 627-5W1-224-1N6	Flash	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold		2	Black	Copper Alloy	1 (DE E) - 5W1	4-40	Polyester Thermoplastic	10A 5A
EDAC Inc. 627-5W1-224-7ND	Flash	125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Through Hole	UL94 V-0	Gold		2	Black	Copper Alloy	1 (DE E) - 5W1	Board Side (M3)	Polyester Thermoplastic
EDAC Inc. 627-5W1-224-4TD	Flash	125 VDC	Combo D-Sub		-55 °C	125 °C	Male Pins Plug			Solder	Signal and Power	Board Lock Grounding Indents Shielded	Through Hole	UL94 V-0	Gold	5 A 40 A	2	Black	Copper Alloy	1 (DE E) - 5W1	Board Side (M3)	Polyester Thermoplastic		5
EDAC Inc. 627-5W1-624-2ND		125 VDC	Combo D-Sub	Nickel Plated Steel	-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Board Lock Grounding Indents Shielded	Through Hole	UL94 V-0	Gold	5 A 20 A	2	Black	Copper Alloy	1 (DE E) - 5W1	Board Side (M3)	Polyester Thermoplastic			0.76 Ám	30 Áin
EDAC Inc. 627-5W1-224-4TE	Flash	125 VDC	Combo D-Sub		-55 °C	125 °C	Male Pins Plug			Solder	Signal and Power	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold	5 A 40 A	2	Black	Copper Alloy	1 (DE E) - 5W1	M3	Polyester Thermoplastic		5
EDAC Inc. 627-5W1-624-1T4		125 VDC	Combo D-Sub		-55 °C	125 °C	Male Pins Plug	4	1	Solder	Coax Signal	Grounding Indents Shielded	Panel Mount Through Hole	UL94 V-0	Gold		2	Black	Copper Alloy	1 (DE E) - 5W1	4-40	Polyester Thermoplastic	10A 5A		0.76 Ám	30 Áin
EDAC Inc. 627-5W1-622-7TA		125 VDC	Combo D-Sub		-55 °C	125 °C	Male Pins Plug	4	1		Coax Signal	Grounding Indents Shielded	Free Hanging (In-Line)	UL94 V-0	Gold		2	Black	Copper Alloy	1 (DE E) - 5W1	Board Side (M3)	Polyester Thermoplastic			0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.64

Description

General part information

627-5W1 Series

5 (4 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
