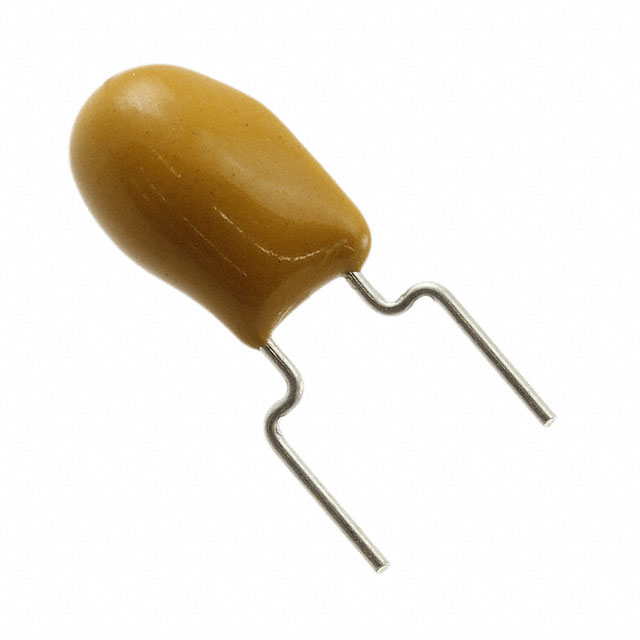

T354J107K010AS

Active

KEMET

CAP TANT 100UF 10% 10V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 100UF 10% 10V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T354J107K010AS

Capacitance	100 µF
ESR (Equivalent Series Resistance)	1 Ohm
Features	General Purpose
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	6.35 mm
Lead Spacing	0.25 in
Manufacturer Size Code	J
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.331 in
Size / Dimension [diameter]	8.4 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	10 V

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Tolerance	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Manufacturer Size Code	Mounting Type
KEMET T354J107K010AS	Radial	-55 °C	125 °C	Conformal Coated	10 %	General Purpose	0.331 in	8.4 mm	1 Ohm	100 µF	14 mm	0.551 "	6.35 mm	0.25 in	10 V	J	Through Hole
KEMET T354J336M025AS	Radial	-55 °C	125 °C	Conformal Coated	20 %	General Purpose	0.331 in	8.4 mm	1.2 Ohm	33 ÁF	14 mm	0.551 "	6.35 mm	0.25 in	25 VDC	J	Through Hole
KEMET T354J336K025AT	Radial	-55 °C	125 °C	Conformal Coated	10 %	General Purpose	0.331 in	8.4 mm	1.2 Ohm	33 ÁF	14 mm	0.551 "	6.35 mm	0.25 in	25 VDC	J	Through Hole
