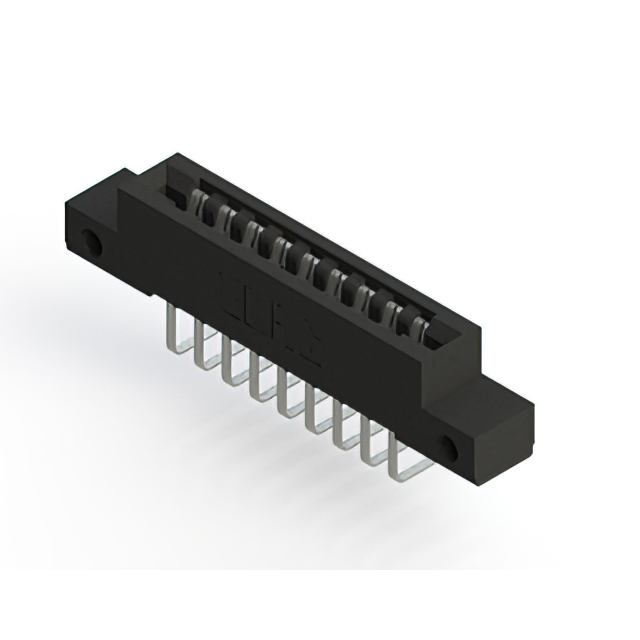

857-009-458-112

Active

EDAC Inc.

CONN EDGE SGL FML 9POS 0.156 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-009-458-112

Active

EDAC Inc.

CONN EDGE SGL FML 9POS 0.156 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-009-458-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions/Bay/Row [custom]	9
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-009 Series

...

Part	Gender	Mounting Type	Contact Finish	Material - Insulation	Color	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature	Flange Feature	Flange Feature	Read Out	Number of Positions	Contact Material	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Termination	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 857-009-453-112	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Dual Edge	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Dual	18	Copper Alloy	0.156 in	3.96 mm	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1
EDAC Inc. 857-009-445-104	Female	Through Hole	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded			Single	9	Copper Alloy	0.156 in	3.96 mm	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Wire Wrap	1	3.96 mm	0.156 in
EDAC Inc. 857-009-554-101	Female	Through Hole Right Angle	Gold	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Dual Edge				Dual	18	Copper Alloy	0.156 in	3.96 mm	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1			10 Áin	0.25 Ám
EDAC Inc. 857-009-453-103	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Dual Edge	Floating Bobbin Flush Mount			Dual	18	Copper Alloy	0.156 in	3.96 mm	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1	2.95 mm	0.116 in
EDAC Inc. 857-009-459-112	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Single Edge	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Single	9	Copper Alloy	0.156 in	3.96 mm	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1
EDAC Inc. 857-009-457-102	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded			Dual	18	Copper Alloy	0.156 in	3.96 mm	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1	3.25 mm	0.128 "
EDAC Inc. 857-009-458-112	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Single Edge	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Single	9	Copper Alloy	0.156 in	3.96 mm	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1
EDAC Inc. 857-009-458-104	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded			Single	9	Copper Alloy	0.156 in	3.96 mm	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1	3.96 mm	0.156 in
EDAC Inc. 857-009-458-107	Female	Through Hole Right Angle	Tin	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening			Single	9	Copper Alloy	0.156 in	3.96 mm	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder	1
EDAC Inc. 857-009-501-101	Female	Through Hole	Gold	Polyphenylene Sulfide (PPS)	Black	9	Non Specified - Dual Edge				Dual	18	Copper Alloy	0.156 in	3.96 mm	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Solder Eyelet(s)	1			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 68.98
Newark	Each	1	$ 82.77
		100	$ 54.00
		250	$ 47.59
		500	$ 43.77
		1000	$ 37.00

Description

General part information

857-009 Series

9 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
