Q-2I01J0003.25M

Active

Amphenol Custom Cable

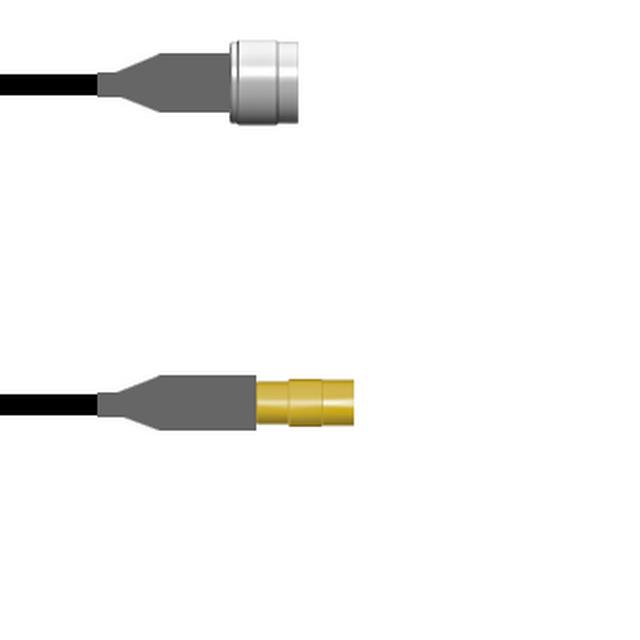

CBL ASSY MMCX-NTYPE JK-PL 9.843"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JK-PL 9.843"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	Style	Cable Type	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	Length	Length	Length	2nd Connector	1st Connector Mounting Type	Features	1st Connector	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-2I01J0003003M	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms	3 m	118.1 in	9.8 '	N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black
Amphenol Custom Cable Q-2I01J0003.25M	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms				N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black	9.843 "	250 mm
Amphenol Custom Cable Q-2I01J00031.5M	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms	1.5 m	59.1 in	4.9 ft	N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black
Amphenol Custom Cable Q-2I01J0003001M	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms	1 m	39.4 in	3.3 ft	N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black
Amphenol Custom Cable Q-2I01J0003024i	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms	609.6 mm	24 "		N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black
Amphenol Custom Cable Q-2I01J0003003i	Male	MMCX to N-Type	RG-174	Free Hanging (In-Line)	Female	6000 MHz	50 Ohms	76.2 mm	3 in		N-Type Plug	Free Hanging (In-Line)	Shielded	MMCX Jack	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial MMCX to N-Type RG-174 9.843" (250.00mm)

Technical documentation and resources

No documents available
