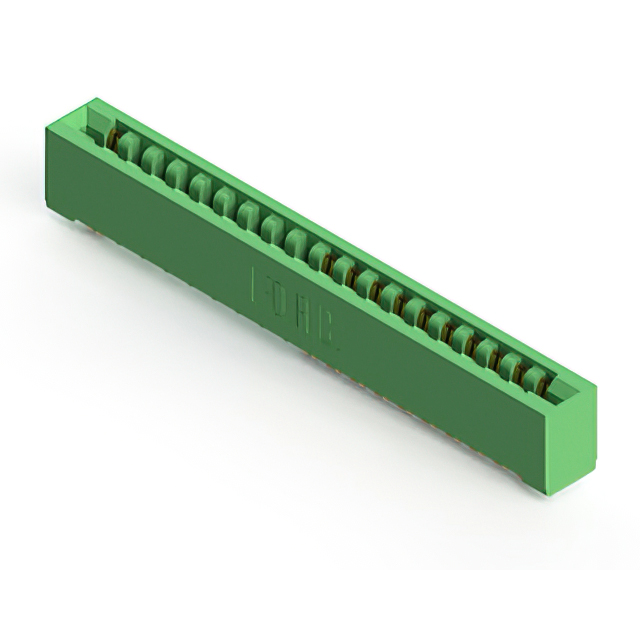

807-038-555-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-038-555-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-038-555-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-038 Series
...
| Part | Termination | Material - Insulation | Features | Number of Positions | Contact Type | Card Type | Termination Rows | Contact Finish | Number of Positions/Bay/Row [custom] | Read Out | Pitch [x] | Pitch [x] | Gender | Flange Feature | Flange Feature | Flange Feature | Mounting Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | Card Extender | 38 | Semi Bellows | Non Specified - Dual Edge | 2 | Gold | 19 | Dual | 0.156 in | 3.96 mm | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Board Edge Straddle Mount | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | ||
EDAC Inc. | Wire Wrap | Diallyl Phthalate (DAP) | 38 | Semi Bellows | Non Specified - Dual Edge | 2 | Tin | 19 | Dual | 0.156 in | 3.96 mm | Female | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Gold | 38 | Dual | 0.156 in | 3.96 mm | Female | Through Hole Right Angle | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | ||||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Tin | 38 | Dual | 0.156 in | 3.96 mm | Female | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Tin | 38 | Dual | 0.156 in | 3.96 mm | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Through Hole Right Angle | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||||
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Tin | 38 | Dual | 0.156 in | 3.96 mm | Female | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 38 | Semi Bellows | Non Specified - Dual Edge | 2 | Gold | 19 | Dual | 0.156 in | 3.96 mm | Female | Flush Mount Top Opening Unthreaded | Through Hole | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 3.96 mm | 0.156 in | |||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Tin | 38 | Dual | 0.156 in | 3.96 mm | Female | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 3.96 mm | 0.156 in | |||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | Card Extender | 38 | Semi Bellows | Non Specified - Dual Edge | 2 | Gold | 19 | Dual | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | |||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 76 | Semi Bellows | Non Specified - Dual Edge | 1 | Gold | 38 | Dual | 0.156 in | 3.96 mm | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Through Hole Right Angle | Green | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 85.76 | |
Description
General part information
807-038 Series
38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
