A7D-2M-1

Active

Omron Electronics Inc-EMC Div

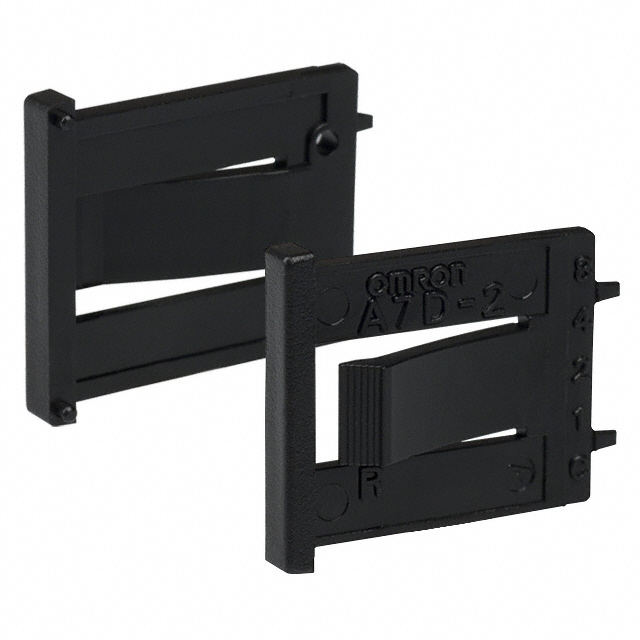

END CAP BLK FRONT MNT 2PC PART

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

END CAP BLK FRONT MNT 2PC PART

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

End Cap

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A7D-2M-1	A7D Series

	-	-
Accessory Type	End Cap	Spacer, End Cap
Actuator Type	-	Pushwheel
Color	-	Light Gray, Black
Contact Rating @ Voltage	-	0.1 - 30 VDC
Depth Behind Flange	-	17.5 mm
Depth Behind Flange	-	17 mm
Electrical Life	-	20000 Steps
End Caps	-	Sold Separately
Features	-	Internal Stoppers
For Use With/Related Products	SW504 ~ SW505-ND, SW279 ~ SW280-ND	A7DP Series, A7D, SW504 ~ SW505-ND, SW279 ~ SW280-ND
Mounting Type	-	Panel Mount, Snap-In, Panel Mount, Screw
Number of Sections	-	1
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Output Code	-	BCD, SPDT
Read Out	-	0
Read Out	-	2 - 9
Read Out	-	+/-
Termination Style	-	PC Pin

SWITCH THUMB BCD 0.1A 30V

Part	Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	End Caps	Termination Style	Contact Rating @ Voltage	Output Code	Number of Sections	Depth Behind Flange [z]	Mounting Type	Read Out [Min]	Read Out [Max]	Electrical Life	Actuator Type	Depth Behind Flange	For Use With/Related Products	Accessory Type	Read Out
Omron Electronics Inc-EMC Div A7D-206	Light Gray	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1	17.5 mm	Panel Mount, Snap-In	0	9	20000 Steps	Pushwheel
Omron Electronics Inc-EMC Div A7D-106	Light Gray	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1		Panel Mount, Screw	0	9	20000 Steps	Pushwheel	17 mm
Omron Electronics Inc-EMC Div A7D-106-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1		Panel Mount, Screw	0	9	20000 Steps	Pushwheel	17 mm
Omron Electronics Inc-EMC Div A7D-2PU-1																A7D, A7DP Series	Spacer
Omron Electronics Inc-EMC Div A7D-1M																SW279 ~ SW280-ND, SW504 ~ SW505-ND	End Cap
Omron Electronics Inc-EMC Div A7D-2PA-1																SW279 ~ SW280-ND, SW504 ~ SW505-ND	Spacer
Omron Electronics Inc-EMC Div A7D-4106-67-1
Omron Electronics Inc-EMC Div A7D-1PU-1																A7D, A7DP Series	Spacer
Omron Electronics Inc-EMC Div A7D-206-PM-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	SPDT	1	17.5 mm	Panel Mount, Snap-In			20000 Steps	Pushwheel				+/-
Omron Electronics Inc-EMC Div A7D-106-PM-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	SPDT	1		Panel Mount, Screw			20000 Steps	Pushwheel	17 mm			+/-
