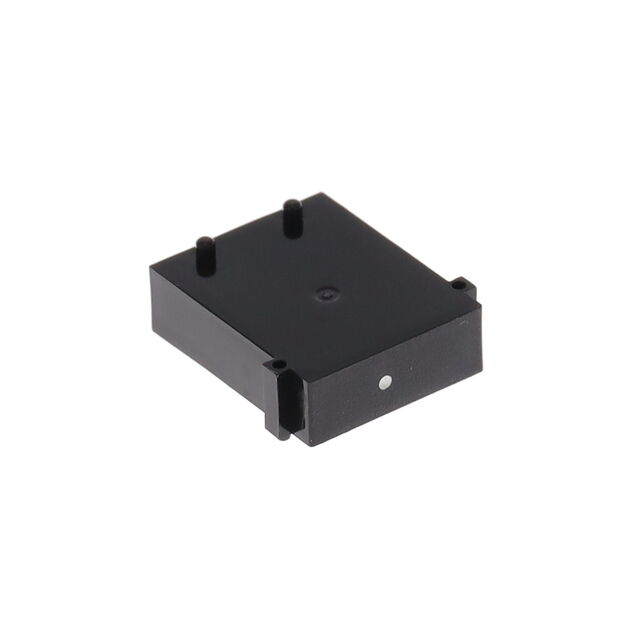

A7D-1PU-1

Active

Omron Electronics Inc-EMC Div

THUMBWHEEL

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

THUMBWHEEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7D-1PU-1	A7D Series

	-	-
Accessory Type	Spacer	Spacer, End Cap
Actuator Type	-	Pushwheel
Color	-	Light Gray, Black
Contact Rating @ Voltage	-	0.1 - 30 VDC
Depth Behind Flange	-	17.5 mm
Depth Behind Flange	-	17 mm
Electrical Life	-	20000 Steps
End Caps	-	Sold Separately
Features	-	Internal Stoppers
For Use With/Related Products	A7DP Series, A7D	A7DP Series, A7D, SW504 ~ SW505-ND, SW279 ~ SW280-ND
Mounting Type	-	Panel Mount, Snap-In, Panel Mount, Screw
Number of Sections	-	1
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Output Code	-	BCD, SPDT
Read Out	-	0
Read Out	-	2 - 9
Read Out	-	+/-
Termination Style	-	PC Pin

SWITCH THUMB BCD 0.1A 30V

Part	Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	End Caps	Termination Style	Contact Rating @ Voltage	Output Code	Number of Sections	Depth Behind Flange [z]	Mounting Type	Read Out [Min]	Read Out [Max]	Electrical Life	Actuator Type	Depth Behind Flange	For Use With/Related Products	Accessory Type	Read Out
Omron Electronics Inc-EMC Div A7D-206	Light Gray	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1	17.5 mm	Panel Mount, Snap-In	0	9	20000 Steps	Pushwheel
Omron Electronics Inc-EMC Div A7D-106	Light Gray	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1		Panel Mount, Screw	0	9	20000 Steps	Pushwheel	17 mm
Omron Electronics Inc-EMC Div A7D-106-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	BCD	1		Panel Mount, Screw	0	9	20000 Steps	Pushwheel	17 mm
Omron Electronics Inc-EMC Div A7D-2PU-1																A7D, A7DP Series	Spacer
Omron Electronics Inc-EMC Div A7D-1M																SW279 ~ SW280-ND, SW504 ~ SW505-ND	End Cap
Omron Electronics Inc-EMC Div A7D-2PA-1																SW279 ~ SW280-ND, SW504 ~ SW505-ND	Spacer
Omron Electronics Inc-EMC Div A7D-4106-67-1
Omron Electronics Inc-EMC Div A7D-1PU-1																A7D, A7DP Series	Spacer
Omron Electronics Inc-EMC Div A7D-206-PM-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	SPDT	1	17.5 mm	Panel Mount, Snap-In			20000 Steps	Pushwheel				+/-
Omron Electronics Inc-EMC Div A7D-106-PM-1	Black	-10 °C	158 °F	Sold Separately	PC Pin	0.1 A, 30 VDC	SPDT	1		Panel Mount, Screw			20000 Steps	Pushwheel	17 mm			+/-
