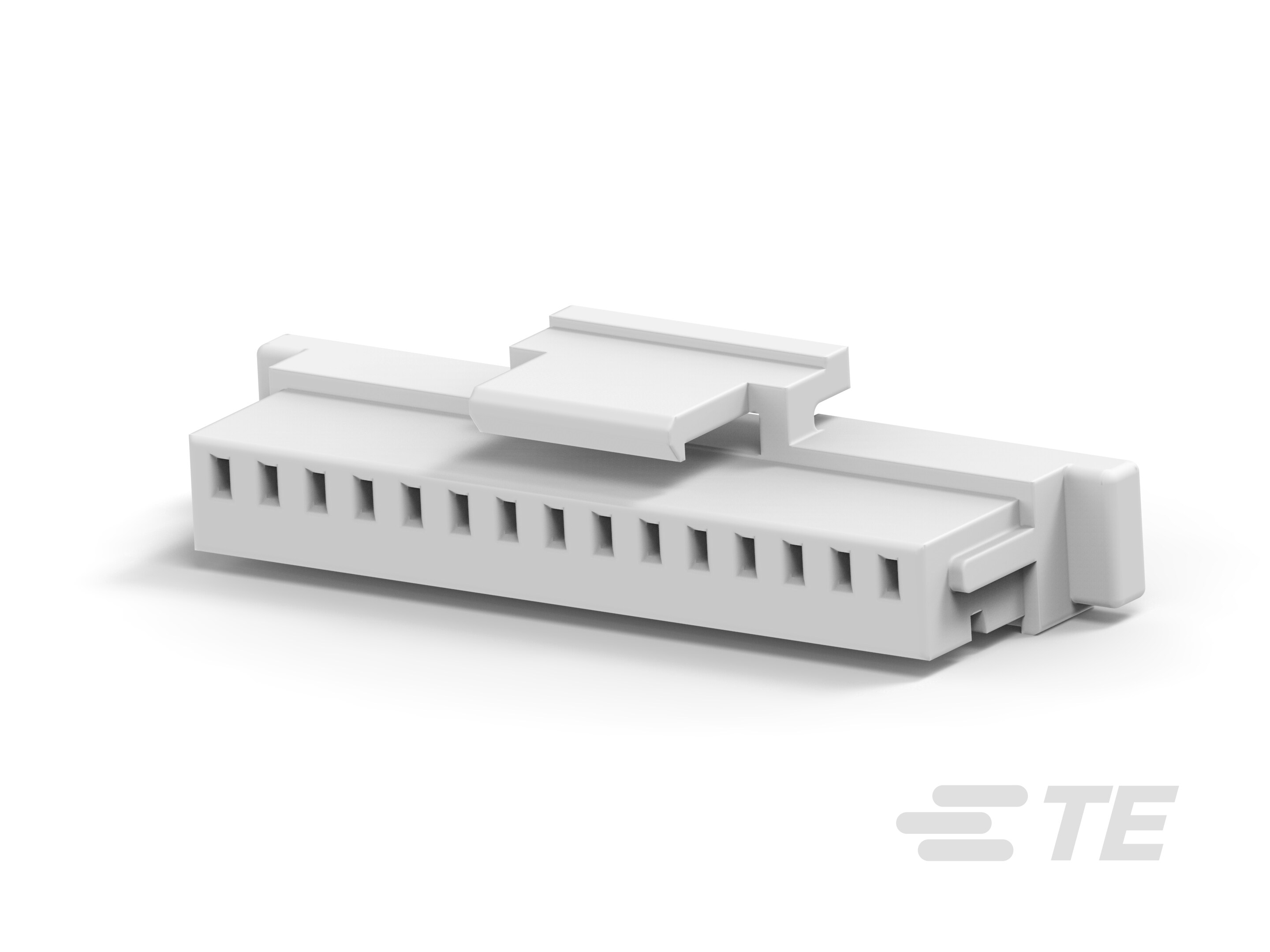

Specification	3-2367198-5

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Halogen Free, Plastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.039 in

2367198 Series

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Mounting Type	Contact Type	Number of Positions	Pitch	Color	Fastening Type	Connector Type	Number of Rows	Contact Termination
TE Connectivity AMP Connectors 1-2367198-4	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	14	0.039 in	Black	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2367198-8	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	8	0.039 in	Black	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 3-2367198-4	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	14	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2-2367198-5	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	5	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2367198-5	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	5	0.039 in	Black	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2367198-7	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	7	0.039 in	Black	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 3-2367198-3	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	13	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2-2367198-4	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	4	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2-2367198-6	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	6	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
TE Connectivity AMP Connectors 2-2367198-3	Contacts Not Included	-40 °C	85 °C	Halogen Free Plastic	Free Hanging (In-Line)	Female Socket	3	0.039 in	Natural	Latch Lock	Receptacle	1	Crimp
