2367198 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

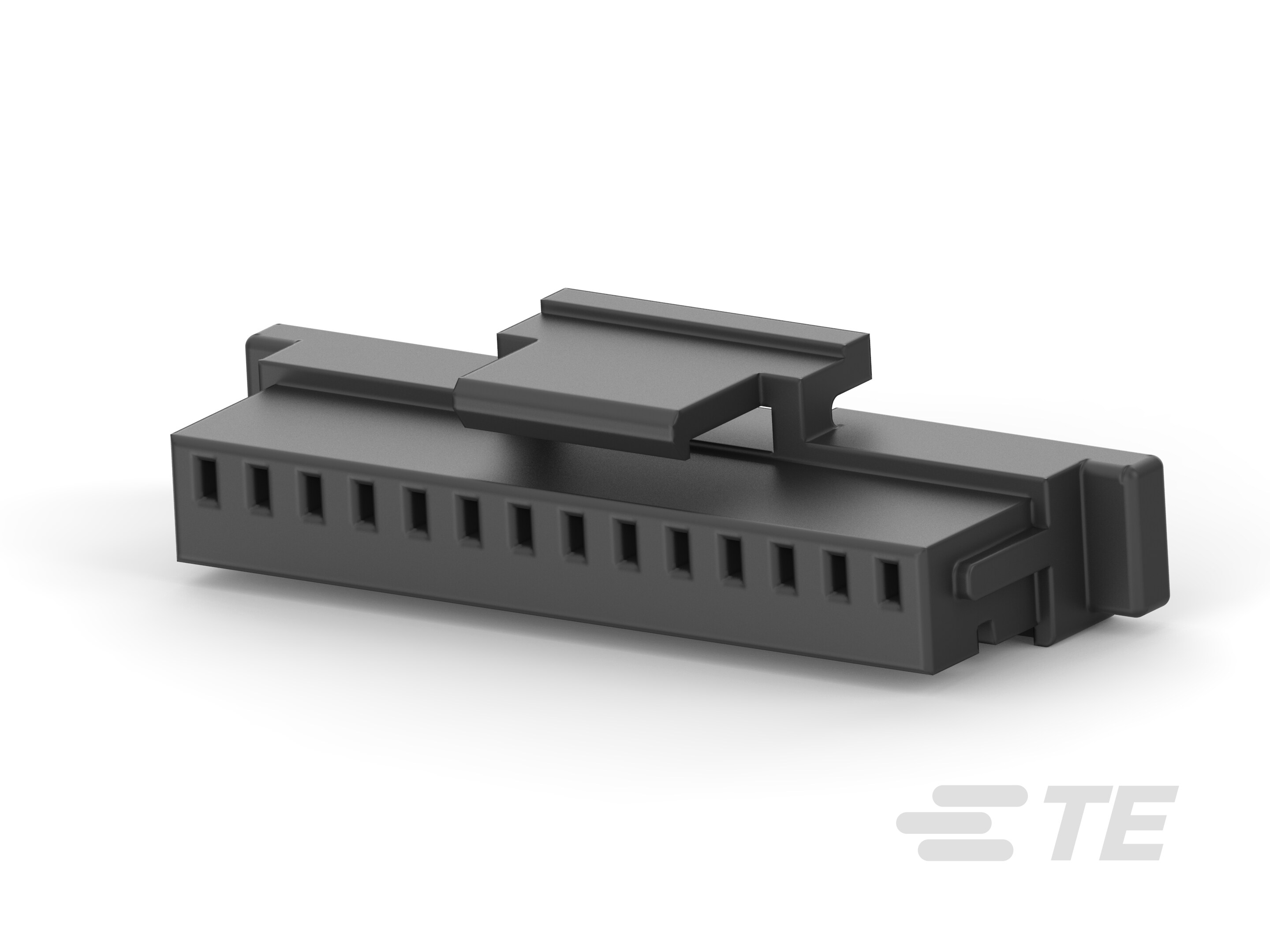

CONNECTOR HOUSING, PLUG/RCPT, 14POS, 1MM ROHS COMPLIANT: YES
| Part | Note | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Material | Mounting Type | Contact Type | Number of Positions | Pitch | Color | Fastening Type | Connector Type | Number of Rows | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 14 | 0.039 in | Black | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 8 | 0.039 in | Black | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 14 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 5 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 5 | 0.039 in | Black | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 7 | 0.039 in | Black | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 13 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 4 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
 TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 6 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
TE Connectivity AMP Connectors | Contacts Not Included | -40 °C | 85 °C | Halogen Free Plastic | Free Hanging (In-Line) | Female Socket | 3 | 0.039 in | Natural | Latch Lock | Receptacle | 1 | Crimp |
