Specification	1776489-4

Color	Blue
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	14 A, 10 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.079 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.197 in
Positions Per Level	4
Termination Style	Solder
Type	Male Pins, Unshrouded, Header
Voltage - UL	300 V, 250 V

1776489 Series

Part	Voltage - UL	Current - UL	Material Flammability Rating	Insulation Height	Housing Material	Contact Tail Length	Contact Material	Number of Positions	Contact Mating Finish	Header Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Mounting Type	Type	Termination Style	Positions Per Level	Color	Pitch
TE Connectivity AMP Connectors 2-1776489-2	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	22	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	22	Blue	0.197 in
TE Connectivity AMP Connectors 2-1776489-3	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	23	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	23	Blue	0.197 in
TE Connectivity AMP Connectors 1776489-4	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	4	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	4	Blue	0.197 in
TE Connectivity AMP Connectors 1-1776489-6	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	16	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	16	Blue	0.197 in
TE Connectivity AMP Connectors 1-1776489-8	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	18	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	18	Blue	0.197 in

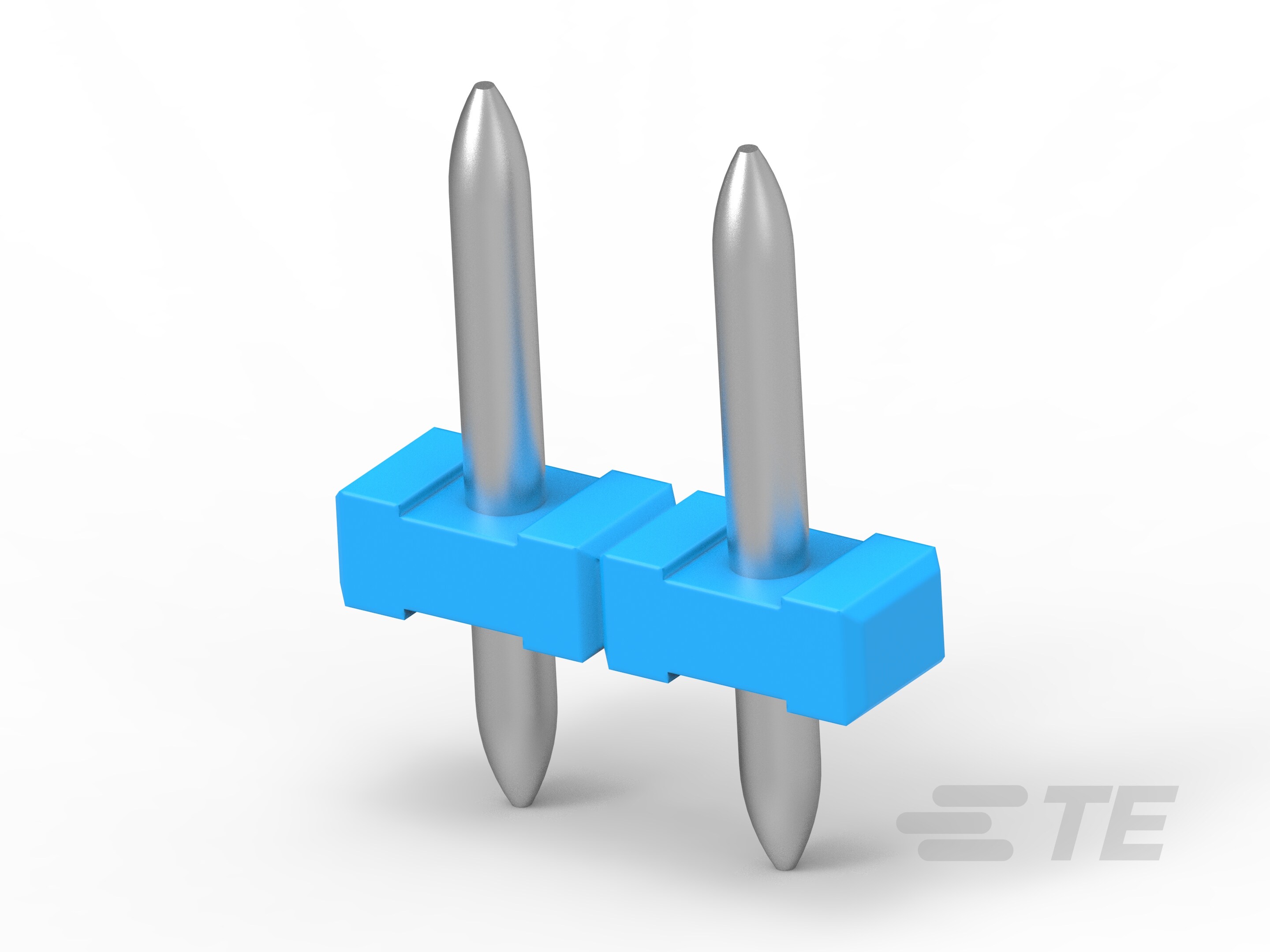

TE Connectivity AMP Connectors 1776489-2	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	2	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	2	Blue	0.197 in
TE Connectivity AMP Connectors 2-1776489-1	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	21	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	21	Blue	0.197 in
TE Connectivity AMP Connectors 1-1776489-4	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	14	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	14	Blue	0.197 in

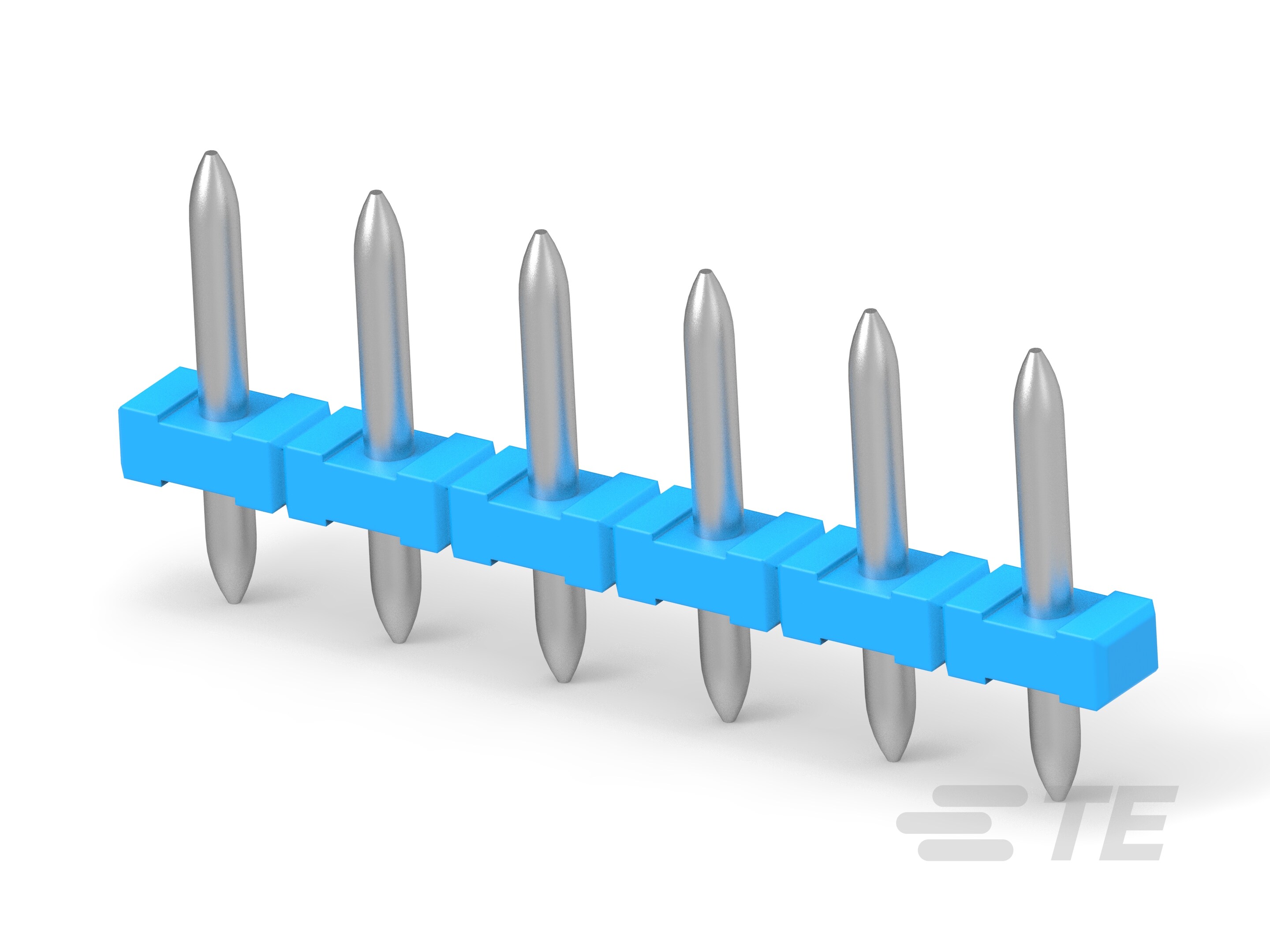

TE Connectivity AMP Connectors 1776489-6	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	6	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	6	Blue	0.197 in
TE Connectivity AMP Connectors 1-1776489-9	250 V 300 V	10 A 14 A	UL94 V-0	0.079 in	Nylon 6/6 PA66 Polyamide	0.138 in	Brass	19	Tin	Vertical	-55 °C	105 °C	1	Through Hole	Header Male Pins Unshrouded	Solder	19	Blue	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ENG_CD_1776489_A1.pdf

1-1773458-1_EURO_STYLE_TERMINAL_BLOCKS_QRG

BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS

Terminal Block Stacking Connectors

Datasheet

1776489-4 | Datasheet
