7710A B591000

Active

Belden Inc.

3 #18 PE SH PVC FRTPE

Search across all available documentation for this part.

Active

Belden Inc.

3 #18 PE SH PVC FRTPE

Technical Specifications

Parameters and characteristics for this part

Specification	7710A B591000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.746 "
Jacket (Insulation) Diameter [diameter]	18.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Shield Material	Shield Coverage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Type	Usage	Conductor Strand	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Insulation	Voltage	Number of Conductors	Jacket (Insulation) Material	Cable Type
Belden Inc. 7710A B591000	Black	Aluminum Polyester Copper Tinned	95 % 100 %	Copper Bare	0.746 "	18.95 mm	18 AWG	Braid Foil	Video	Solid	UL Style CMR	-40 °C	75 ░C	1000 ft	304.8 m	Polyethylene (PE)	300 V	3	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.35

General part information

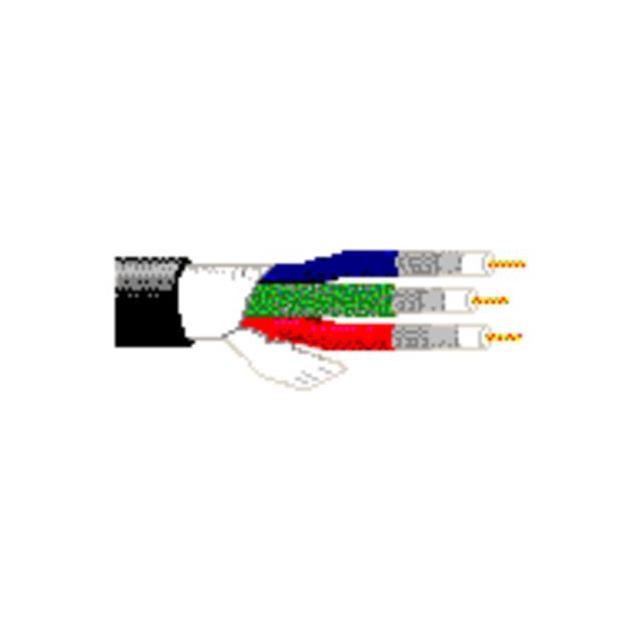

3 (Coax) Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 1000.0' (304.8m)
