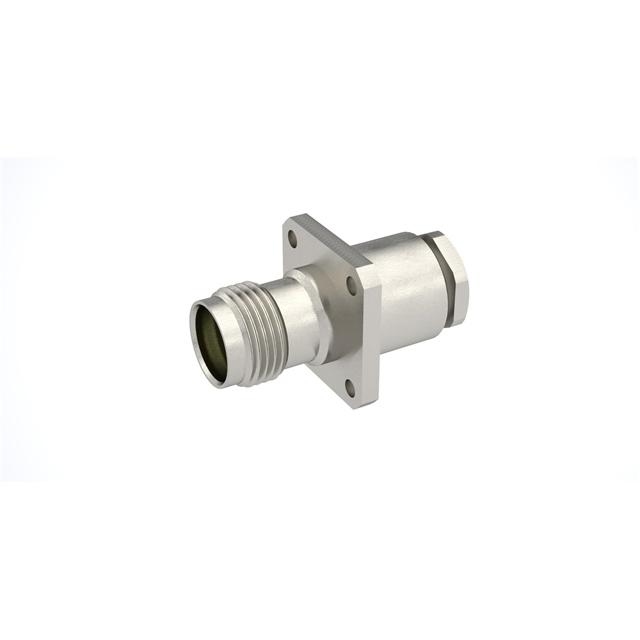

R143253000

Active

Radiall USA, Inc.

TNC / STRAIGHT SQUARE FLANGE JAC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / STRAIGHT SQUARE FLANGE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	R143253000

Body Finish	Nickel
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Contact Termination	Impedance	Center Contact Material	Connector Type	Shield Termination	Number of Ports	Housing Color	Body Material	Mating Cycles	Mounting Feature	Center Contact Plating	Connector Style	Body Finish	Cable Group	Cable Group	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]
Radiall USA, Inc. R143253000	Solder	50 Ohms	Beryllium Copper	Female Socket Jack	Clamp	1	Silver	Brass	500	Flange	Gold	TNC	Nickel	196	RG-178	Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	165 °C	11 GHz
Radiall USA, Inc. R143258000	Solder	50 Ohms	Beryllium Copper	Female Socket Jack	Clamp	1	Silver	Brass	500	Flange	Gold	TNC	Nickel		141 142 223 400 RG-58	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	11 GHz
Radiall USA, Inc. R143254000	Solder	50 Ohms	Beryllium Copper	Female Socket Jack	Clamp	1	Silver	Brass	500	Flange	Gold	TNC	Nickel		187 188 316 RG-179	Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	165 °C	11 GHz
Radiall USA, Inc. R143257450W	Solder	50 Ohms	Beryllium Copper	Female Socket Jack	Solder	1	Silver	Brass	500	Flange	Gold	TNC	Nickel		RG-405 (.085" Semi Rigid)	Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	105 ░C	6000 MHz
Radiall USA, Inc. R143257440	Solder	50 Ohms	Beryllium Copper	Female Socket Jack	Solder	1	Silver	Brass	500	Flange	Gold	TNC	Nickel		RG-405 (.085" Semi Rigid)	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	105 ░C	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 43.27

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
