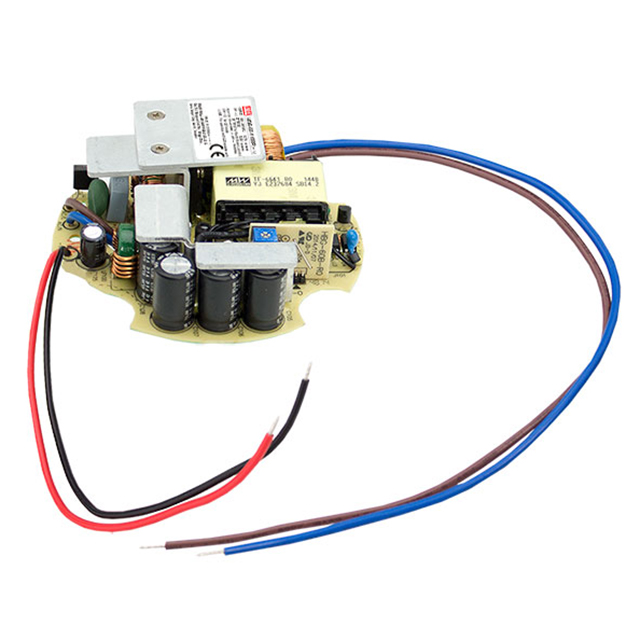

HBG-60-1400P

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 28-43V 1.4A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 28-43V 1.4A

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Features	Efficiency	Type	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Approval Agency	Power (Watts)	Mounting Type	Topology	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]
MEAN WELL USA Inc. HBG-60-1400P	Wire Leads	OCP OTP	89 %	Constant Current	3750 V	28 V	43 V	1	90 VAC	CB CCC CE cURus ENEC	60 W	Chassis Mount	AC DC Converter	295 VAC	1.4 A	-40 °C	75 ░C
MEAN WELL USA Inc. HBG-60-2100P	Wire Leads	OCP OTP	89 %	Constant Current	3750 V	12 V	29 V	1	90 VAC	CB CCC CE cURus ENEC	61 W	Chassis Mount	AC DC Converter	295 VAC	2.1 A	-40 °C	75 ░C
MEAN WELL USA Inc. HBG-60-2100	Wire Leads	OCP OTP	89 %	Constant Current	3750 V	12 V	29 V	1	90 VAC	CB CCC CE cURus ENEC	61 W	Chassis Mount	AC DC Converter	295 VAC	2.1 A	-40 °C	85 °C	57.5 mm	110 mm	2.26 "	4.33 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	45	$ 19.37

General part information

1.4A 28 ~ 43V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
