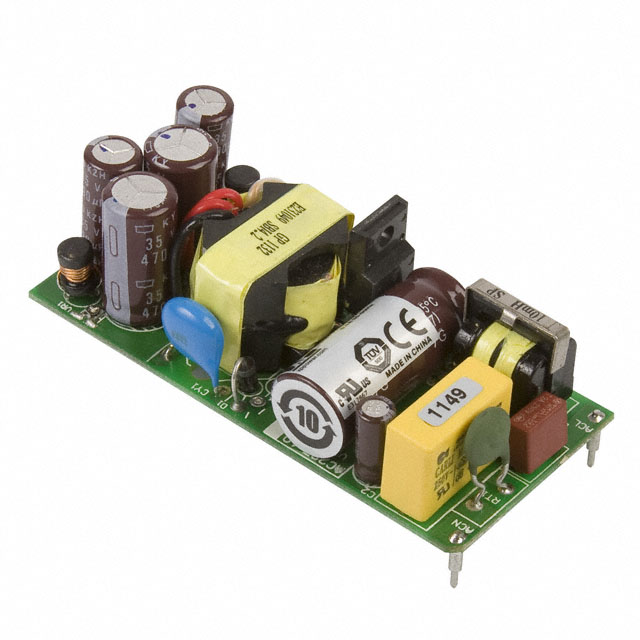

ECL30UD01-P

Active

XP POWER

AC/DC CONVERTER +/-12V 30W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER +/-12V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Line Regulation	Mounting Type	Approval Agency	Package / Case	Number of Outputs	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Features	Load Regulation	Weight	Weight	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
XP POWER ECL30UD01-P	Open Frame	0.5 %	Through Hole	CSA cUL EN IEC UL	5-DIP Module	2	12 V	84 %	1.3 A	Universal Input	1 %	0.132 lb	59.87 g	ITE (Commercial)	-20 °C	70 °C	62368-1	30 W	75.2 mm	1.05 "	26.7 mm	1.36 "	34.6 mm	2.96 in
XP POWER ECL30UD01-E	Enclosed	0.5 %	Through Hole	CSA cUL EN IEC UL	5-DIP Module	2	12 V	84 %	1.3 A	Universal Input	1 %	0.342 lb	155.13 g	ITE (Commercial)	-20 °C	70 °C	62368-1	30 W	78.7 mm	1.1 in	27.9 mm	1.5 in	38.1 mm	3.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 58.29
