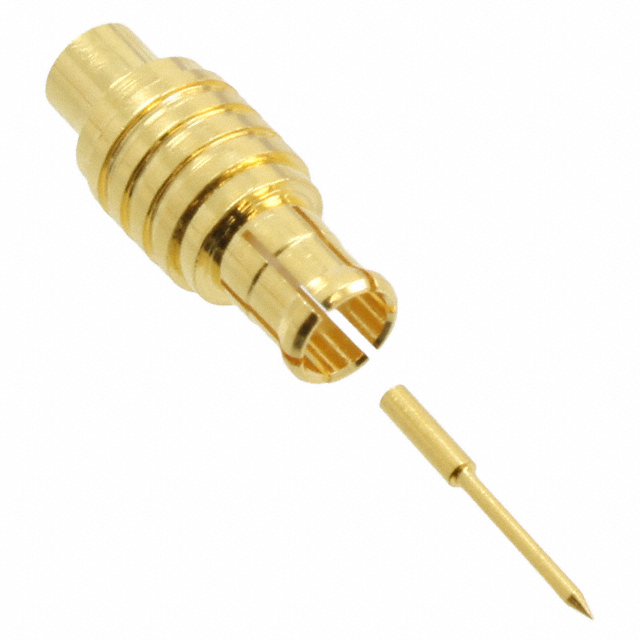

252107-75

Active

Amphenol RF

CONN MCX PLUG STR 75 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX PLUG STR 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	252107-75

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Insertion Loss	Connector Type	Fastening Type	Cable Group	Cable Group [Min]	Cable Group [Max]	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Shield Termination	Body Finish	Body Material	Center Contact Material	Housing Color	Contact Termination	Number of Ports	Mounting Type	Impedance	Connector Style	Dielectric Material	Center Contact Plating
Amphenol RF 252107-75	0.1 dB	Male Pin Plug	Snap-On	RG-405 Semi Rigid	0.085 in	0.086 in	6000 MHz	-65 ░C	165 °C	500	Solder	Gold	Beryllium Copper	Brass	Gold	Solder	1	Free Hanging (In-Line)	75 Ohms	MCX	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
