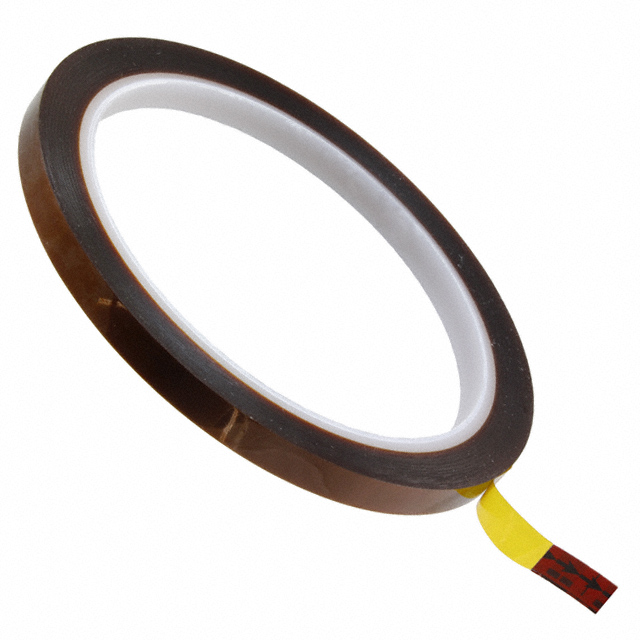

5413 AMBER, 5/8 IN X 36 YD

Active

3M (TC)

TAPE FILM AMBER 5/8"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

5413 AMBER, 5/8 IN X 36 YD

Active

3M (TC)

TAPE FILM AMBER 5/8"X36YDS

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5413 AMBER, 5/8 IN X 36 YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	36 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Film
Temperature Range [Max]	260 °C
Temperature Range [Min]	-73 °C, -100 °F
Thickness	0.0027 "
Thickness	2.7 mils
Thickness	0.069 mm
Thickness - Adhesive	0.0017 in
Thickness - Adhesive	1.7 mils
Thickness - Adhesive	0.043 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking, High Temperature
Width	0.625 in
Width	0.63 in
Width	16 mm

5413 Series

...

Part	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Shelf Life Start	Adhesive	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width [x]	Shelf Life	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Length	Length	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width	Width	Width	Length	Usage	Length [x]	Length [x]
3M (TC) 3M 5413 1" X 6"-100	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C	25.4 mm	1 in	36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide	152.4 mm	6 in	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C
3M (TC) 5413-0.375-36	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide	32.9 m	108 ft	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	0.375 in	9.65 mm	0.38 in	36 yd
3M (TC) 5413-1/2SQ-64	Amber				Film	Date of Manufacture	Silicone Thermosetting					36 Months				Polyimide	12.7 mm	0.5 in	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	0.5 in	12.7 mm	0.5 in	0.5 in	Chemical Resistance
3M (TC) 3M 5413 CIRCLE-0.188"-2000	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide			0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C		4.78 mm	0.19 in
3M (TC) 3M 5413 3" X 5"-25	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C	76.2 mm	3 in	36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide			0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C						5 in	127 mm
3M (TC) 3M 5413 0.75" X 1"-250	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide			0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	19.05 mm	0.75 in	0.75 in			1 in	25.4 mm
3M (TC) 3M 5413 0.5" X 2"-5	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide			0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	0.5 in	12.7 mm	0.5 in
3M (TC) 5413 AMBER, 5/8 IN X 36 YD	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide	32.9 m	108 ft	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	0.625 in	16 mm	0.63 in	36 yd	Masking High Temperature
3M (TC) 5413-1.125-36	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide	32.9 m	108 ft	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C		28.58 mm	1.13 in	36 yd
3M (TC) 3M 5413 0.75" X 10"-100	Amber	1 mils	0.025 mm	0.001 "	Film	Date of Manufacture	Silicone Thermosetting	-100 °F -73 °C	260 °C			36 Months	0.0017 in	1.7 mils	0.043 mm	Polyimide	254 mm	10 in	0.0027 "	2.7 mils	0.069 mm	70 °F	21 °C	19.05 mm	0.75 in	0.75 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.39
		10	$ 61.54
		25	$ 57.69
		50	$ 53.85
		100	$ 51.16

Description

General part information

5413 Series

Film Tape Silicone Thermosetting Adhesive Amber 0.63" (16.00mm) 5/8" X 108' (32.9m) 36 yds
