Specification	7915-15MTBG00N3A

Color	Black
Connector Layout	High Density, DE, E
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	1 A
Dielectric Material	Polyester Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Metal
Shell Size	1
Termination	Solder

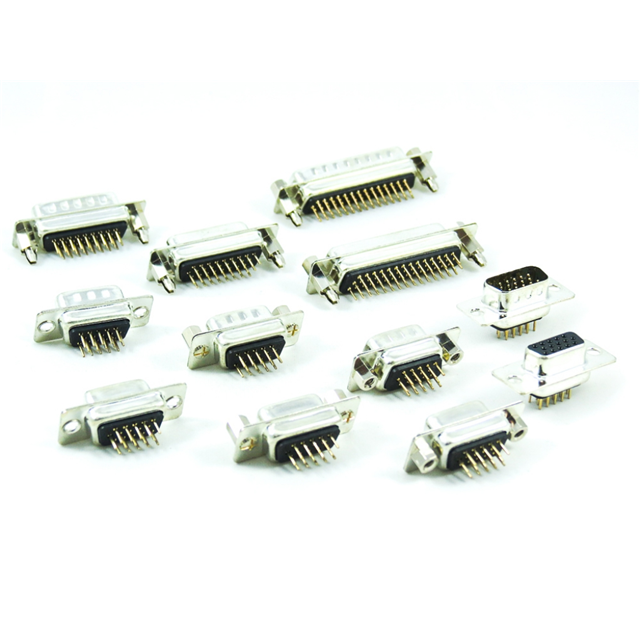

7915 Series

Part	Features	Connector Style	Current Rating	Connector Type	Contact Type	Mounting Type	Number of Positions	Shell Material	Finish	Contact Finish	Flange Feature	Shell Size	Connector Layout	Material Flammability Rating	Number of Rows	Termination	Contact Finish Thickness (string set options)	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Color	Dielectric Material	Contact Material	Primary Material
Oupiin 7915-15MTBG00N3A	Board Lock Grounding Indents	D-Sub High Density	1 A	Male Pins Plug	Signal	Through Hole	15	Metal	Tin Plated	Gold	Board Side (4-40)	1	DE E High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy
Oupiin 7915-15FTBG00N3A	Board Lock	D-Sub High Density	1 A	Female Sockets Receptacle	Signal	Through Hole	15	Metal	Tin Plated	Gold	Board Side (4-40)	1	DE E High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy
Oupiin 7915-15FTBG00N1A	Board Lock	D-Sub High Density	1 A	Female Sockets Receptacle	Signal	Through Hole	15	Metal	Tin Plated	Gold	Female Screwlock (4-40) Mating Side	1	DE E High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy	Metal
Oupiin 7915-15MTBG00N3N6A	Board Lock Grounding Indents	D-Sub High Density	1 A	Male Pins Plug	Signal	Through Hole	15	Steel	Tin Plated	Gold	Board Side (4-40) Female Screwlock (4-40) Mating Side	1	DE E High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Polybutylene Terephthalate (PBT)	Brass
Oupiin 7915-44FTBG00N3A	Board Lock	D-Sub High Density	1 A	Female Sockets Receptacle	Signal	Through Hole	44	Metal	Tin Plated	Gold	Board Side (4-40)	3	B DB High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy
Oupiin 7915-44MTBG00N3A	Board Lock Grounding Indents	D-Sub High Density	1 A	Male Pins Plug	Signal	Through Hole	44	Metal	Tin Plated	Gold	Board Side (4-40)	3	B DB High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy
Oupiin 7915-15FTBG00N3N6A	Board Lock	D-Sub High Density	1 A	Female Sockets Receptacle	Signal	Through Hole	15	Steel	Tin Plated	Gold	Board Side (4-40) Female Screwlock (4-40) Mating Side	1	DE E High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Polybutylene Terephthalate (PBT)	Brass
Oupiin 7915-26FTBG00N2A		D-Sub High Density	1 A	Female Sockets Receptacle	Signal	Through Hole	26	Metal	Tin Plated	Gold	Board Side (4-40)	2	A DA High Density	UL94 V-0	3	Solder	Flash	Flash	-55 °C	105 °C	Black	Glass Filled Polyester Thermoplastic	Copper Alloy
