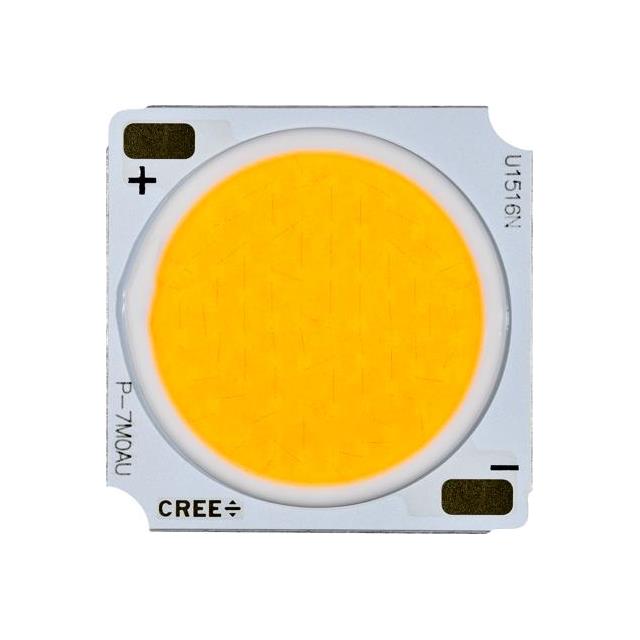

CMU1516-R090-00PN0U0A30H

Active

CreeLED, Inc.

XLAMP CMU LED WHITE PRO9

CMU1516-R090-00PN0U0A30H

Active

CreeLED, Inc.

XLAMP CMU LED WHITE PRO9

Description Specifications Series Pricing CAD Documents

Description

General part information

CMU1516 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1516 White, Warm Square

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1516-R090-00PN0U0A30H

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max	1.2 A
Current - Test	450 mA
Height	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	14.5 mm
Size / Dimension Length	19 mm
Size / Dimension Width	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1516 Series

...

Part	Type	Luminous Flux (Typical)	Height	CRI (Color Rendering Index)	Temperature - Test	Viewing Angle	Size / Dimension Width	Size / Dimension Length	Color	CCT (K)	CCT Description	Voltage - Forward (Vf) (Typ)	Configuration	Current - Test	Current - Max	Lumens/Watt	Light Emitting Surface (LES) Diameter	Lens Type
CreeLED, Inc. CMU1516-0000-000N0U0A30Q	Chip On Board (COB)	2093 lm	1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	3000 K	3-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	138 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-000N0U0A35H	Chip On Board (COB)	2161 lm	1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	3500 K	2-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	142 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-000N0B0A40E	Chip On Board (COB)	2732 lm	1.5 mm	70	85 °C	115 °	19 mm	19 mm	Neutral White	4000 K	5-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	180 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-0000-000N0H0A65G	Chip On Board (COB)	2565 lm	1.5 mm	80	85 °C	115 °	19 mm	19 mm	Cool White	6500 K	3-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	169 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-00PN0U0A30H	Chip On Board (COB)		1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	3000 K		33.7 V	Square	450 mA	1.2 A		14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-000N0U0A31Q	Chip On Board (COB)	2040 lm	1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	3100 K	3-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	135 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-0000-000N0H0A50G	Chip On Board (COB)	2545 lm	1.5 mm	80	85 °C	115 °	19 mm	19 mm	Cool White	5000 K	3-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	168 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-000N0U0A27H	Chip On Board (COB)	2050 lm	1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	2700 K	2-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	135 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-000N0Z0A40H	Chip On Board (COB)	1955 lm	1.5 mm	95	85 °C	115 °	19 mm	19 mm	Neutral White	4000 K	2-Step MacAdam Ellipse	33.7 V	Square	450 mA	1.2 A	129 lm/W	14.5 mm	Flat
CreeLED, Inc. CMU1516-R090-00PN0U0A30Q	Chip On Board (COB)		1.5 mm	90	85 °C	115 °	19 mm	19 mm	Warm White	3000 K		33.7 V	Square	450 mA	1.2 A		14.5 mm	Flat

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

CMU1516-R090-00PN0U0A30H | Datasheet
