Description Specifications Series Pricing CAD Documents

Description

General part information

Q-0303L0 Series

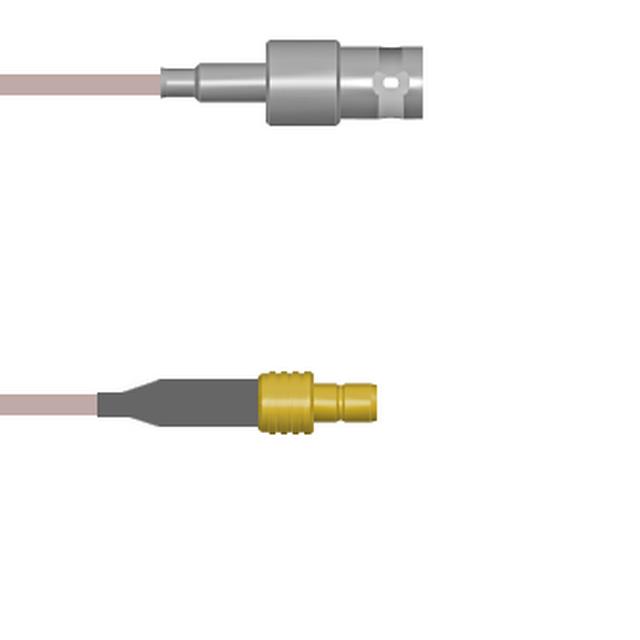

Cable Assembly Coaxial BNC to SMB RG-316 118.1" (3.0m) 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0303L0005003M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG, 316
Color	Copper
Features	Shielded
Frequency - Max	4 GHz
Length	118.1 in
Overall Impedance	50 Ohms
Style	SMB, BNC

Q-0303L0 Series

Part	1st Contact Gender	Overall Impedance	2nd Connector	Length	Features	2nd Contact Gender	2nd Connector Mounting Type	1st Connector	Style	Color	Frequency - Max	Cable Type	1st Connector Mounting Type	Length (ft)
McGill Microwave Systems Q-0303L0005.75M	Female	50 Ohms	SMB Jack	29.53 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0003.25M	Female	50 Ohms	SMB Jack	9.843 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Black	4 GHz	174 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0005002M	Female	50 Ohms	SMB Jack		Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)	6.6 ft
McGill Microwave Systems Q-0303L0003012i	Female	50 Ohms	SMB Jack	12 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Black	4 GHz	174 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0005001M	Female	50 Ohms	SMB Jack	39.4 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L00030.5M	Female	50 Ohms	SMB Jack	19.69 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Black	4 GHz	174 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0005009i	Female	50 Ohms	SMB Jack	228.6 mm	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0005048i	Female	50 Ohms	SMB Jack	48 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0005003M	Female	50 Ohms	SMB Jack	118.1 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Copper	4 GHz	316 RG	Free Hanging (In-Line)
McGill Microwave Systems Q-0303L0003072i	Female	50 Ohms	SMB Jack	72 in	Shielded	Female	Free Hanging (In-Line)	BNC Jack	BNC SMB	Black	4 GHz	174 RG	Free Hanging (In-Line)
