802-10-052-10-001000

Active

Mill-Max Manufacturing Corp.

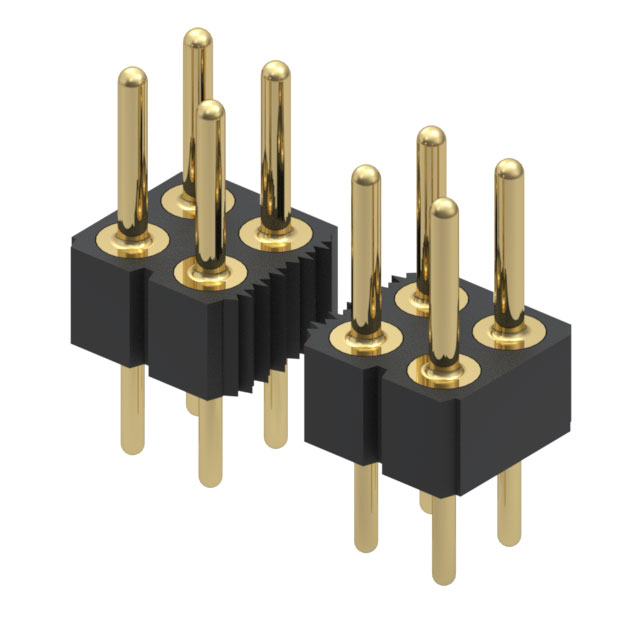

CONN HEADER VERT 52POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

802-10-052-10-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 52POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	802-10-052-10-001000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.195 "
Contact Length - Mating	4.95 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	11.12 mm
Overall Contact Length	0.438 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

802-10 Series

...

Part	Contact Length - Mating	Contact Length - Mating	Contact Material	Insulation Color	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 802-10-064-30-001000	0.195 "	4.95 mm	Brass Alloy	Black	Surface Mount	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	64
Mill-Max Manufacturing Corp. 802-10-060-62-001000		0.191 in	Brass Alloy	Black	Through Hole	Press-Fit Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	60	0.143 in	3.63 mm	0.444 in	11.28 mm	4.85 mm
Mill-Max Manufacturing Corp. 802-10-058-10-004000	0.125 in	3.18 mm	Brass Alloy	Black	Through Hole	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	58	0.125 in	3.18 mm	0.33 in	8.38 mm		1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 802-10-094-10-004000	0.125 in	3.18 mm	Brass Alloy	Black	Through Hole	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	94	0.125 in	3.18 mm	0.33 in	8.38 mm		1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 802-10-056-20-001000	0.195 "	4.95 mm	Brass Alloy	Black	Through Hole Right Angle	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	56	0.126 in							3.2 mm
Mill-Max Manufacturing Corp. 802-10-064-61-051000	0.152 in	3.86 mm	Brass Alloy	Black	Through Hole	Press-Fit Solder	10 çin	0.25 çm	Shrouded - 2 Wall	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	64			0.386 in	9.8 mm		6.88 mm	0.271 in	2.92 mm	0.115 in
Mill-Max Manufacturing Corp. 802-10-060-20-001000	0.195 "	4.95 mm	Brass Alloy	Black	Through Hole Right Angle	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	60	0.126 in							3.2 mm
Mill-Max Manufacturing Corp. 802-10-012-30-001000	0.195 "	4.95 mm	Brass Alloy	Black	Surface Mount	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	12
Mill-Max Manufacturing Corp. 802-10-020-10-004000	0.125 in	3.18 mm	Brass Alloy	Black	Through Hole	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	20	0.125 in	3.18 mm	0.33 in	8.38 mm		1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 802-10-052-10-001000	0.195 "	4.95 mm	Brass Alloy	Black	Through Hole	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	Push-Pull	2	0.1 in	2.54 mm	Gold	Circular	2.54 mm	0.1 in	10 çin	0.25 çm	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	52			0.438 in	11.12 mm				3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.03
		10	$ 8.13
		100	$ 7.26
		500	$ 6.09
		1000	$ 5.38

Description

General part information

802-10 Series

Connector Header Through Hole 52 position 0.100" (2.54mm)
