18880-4SG-522

Active

Conxall/Switchcraft

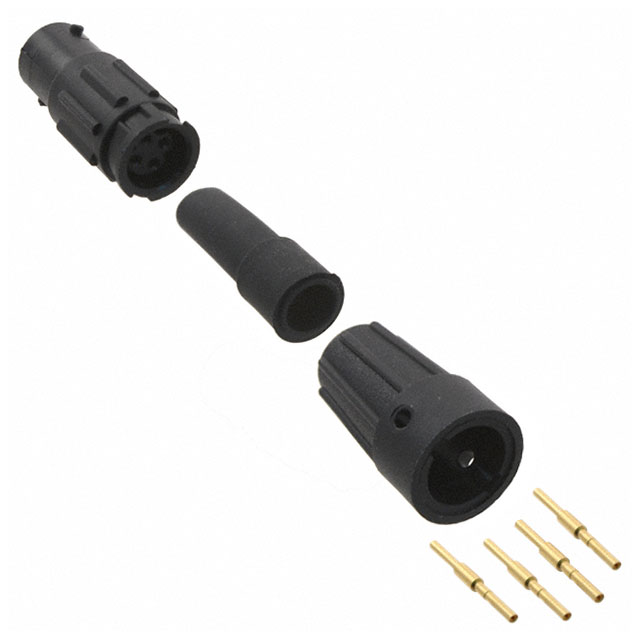

CONN RCPT FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18880-4SG-522	18880-4S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 in
Cable Opening [Min] [diameter]	0.22 in	0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.59 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6 A	6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Mounting Type	Connector Type	Color	Backshell Material, Plating	Applications	Termination	Current Rating (Amps)	Primary Material	Contact Material	Material Flammability Rating	Orientation	Fastening Type	Ingress Protection	Contact Finish - Mating	Voltage Rating	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 18880-4SG-318	Free Hanging (In-Line)	Receptacle, Female Sockets	Black	Thermoplastic	Data, Industrial, Instrumentation, Medical	Crimp	6 A	Plastic	Copper Alloy	UL94 HB	Keyed	Bayonet Lock	IP67 - Dust Tight, Waterproof	Gold	600 VAC	4	Backshell	85 °C	-40 °C	Unshielded
Conxall/Switchcraft 18880-4SG-522	Free Hanging (In-Line)	Receptacle, Female Sockets	Black	Thermoplastic	Data, Industrial, Instrumentation, Medical	Crimp	6 A	Plastic	Copper Alloy	UL94 HB	Keyed	Bayonet Lock	IP67 - Dust Tight, Waterproof	Gold	600 VAC	4	Backshell	85 °C	-40 °C	Unshielded	5.84 mm	0.22 in	5.59 mm	0.23 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Crimp
