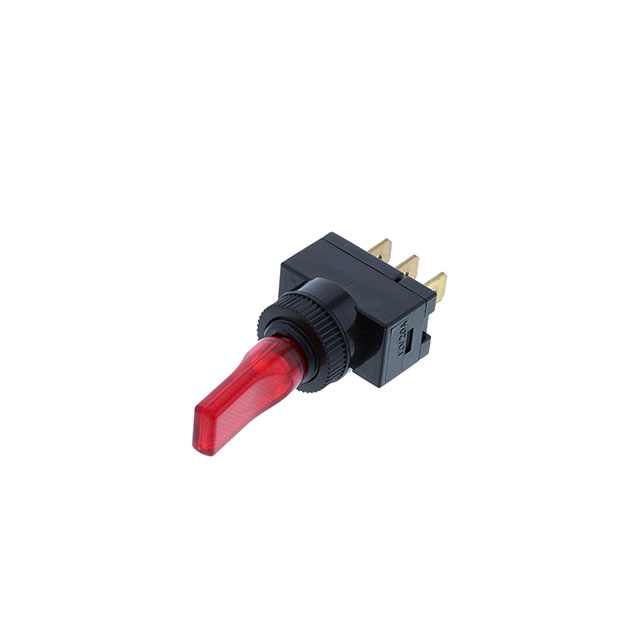

TE5-1A-DC-1-RL

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TE5-1A-DC-1-RL

Actuator Length [x]	25 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Bushing Thread	Bushing Thread	Actuator Length [x]	Voltage Rating - DC	Illumination	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Material	Actuator Type	Electrical Life	Illumination Voltage (Nominal)	Switch Function
Switch Components TE5-1A-DC-1-RL	M12	1 x 1	25 mm	12 V	Illuminated	Quick Connect - 0.250" (6.3mm)	SPST	-25 °C	85 °C	LED, Red	20 A	12.2 mm	Polycarbonate (PC)	Flatted	6000 Cycles	12 VDC	On-Off
