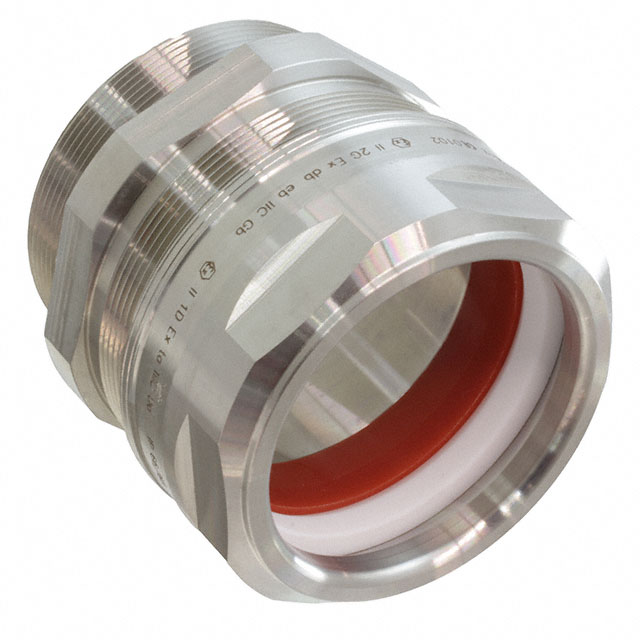

LEX263VA/316LHTS

Active

Pflitsch

CABLE GLAND 44-56MM M63 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 44-56MM M63 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	LEX263VA/316LHTS

Color	Silver
Includes	O-Ring
Ingress Protection	IP66/IP68
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max)	56 mm
Outside Cable Diameter (Max) [Max] [diameter]	2.205 in
Outside Cable Diameter (Min) [Min] [diameter]	44 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.732 in
Panel Hole Size	63 mm
Panel Hole Size	2.48 in
Thread Length	16 mm
Thread Length	0.63 in
Type	Cable Gland

Part	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size	Panel Hole Size	Ingress Protection	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch LEX263MSHTS	O-Ring	2.2 "	55.88 mm	63 mm	2.48 in	IP66/IP68	Brass Nickel Plated	Cable Gland	130 °C	-60 °C	Silver	16 mm	0.63 in	1.73 in	43.94 mm
Pflitsch LEX263VA/316LHTS	O-Ring			63 mm	2.48 in	IP66/IP68	Stainless Steel	Cable Gland	130 °C	-60 °C	Silver	16 mm	0.63 in	1.732 in	44 mm	56 mm	2.205 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M63x1.5 Silver
