565.1-26-196-EL

Active

J.W. Winco

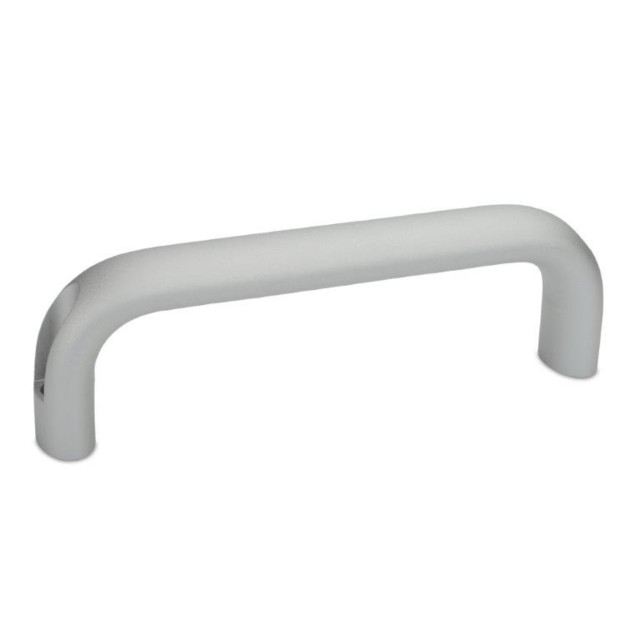

HANDLE ALUMINUM MTG CTR 7.72"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 7.72"

Technical Specifications

Parameters and characteristics for this part

Part	Type	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center [x]	Mounting Type	Material	Length - Center to Center
J.W. Winco 565.1-26-196-EL	Instrumentation	2.24 in	56.9 mm	196.09 mm	7.72 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-116-BL	Instrumentation	2.17 in	55.12 mm		4.57 in	Screw Holes Back	Aluminum	116.08 mm
J.W. Winco 565.1-26-164-EL	Instrumentation	2.24 in	56.9 mm	164.08 mm	6.46 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-132-EL	Instrumentation	2.17 in	55.12 mm	132.08 mm	5.2 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-179-BL	Instrumentation	2.24 in	56.9 mm		7.05 in	Screw Holes Back	Aluminum	179.07 mm
J.W. Winco 565.1-20-112-BL	Instrumentation	1.93 in	49.02 mm	112.01 mm	4.41 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-132-BL	Instrumentation	2.17 in	55.12 mm	132.08 mm	5.2 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-116-SW	Instrumentation	2.17 in	55.12 mm		4.57 in	Screw Holes Back	Aluminum	116.08 mm
J.W. Winco 565.1-26-164-BL	Instrumentation	2.24 in	56.9 mm	164.08 mm	6.46 in	Screw Holes Back	Aluminum
J.W. Winco 565.1-26-132-SW	Instrumentation	2.17 in	55.12 mm	132.08 mm	5.2 in	Screw Holes Back	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.94

General part information

Instrumentation Handle Aluminum Screw Holes, Back
