305-064-500-201

Active

EDAC Inc.

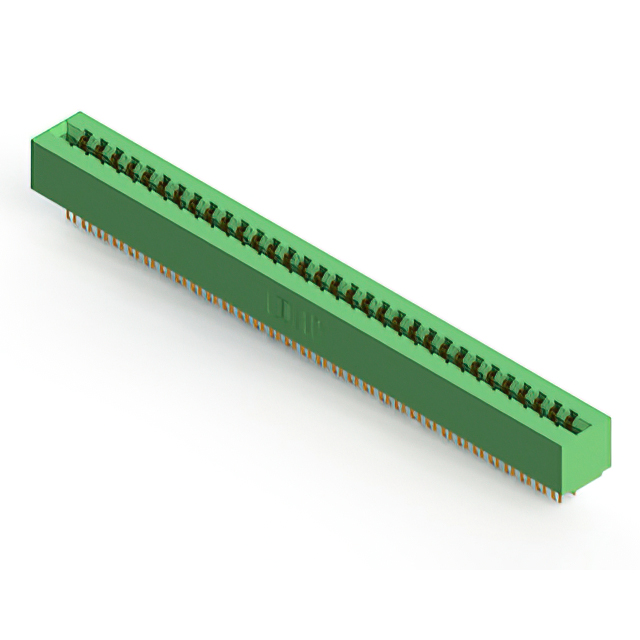

CONN EDGE DUAL FMALE 64POS 0.156

305-064-500-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

305-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	305-064-500-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	64, 32
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

305-064 Series

Part	Number of Positions	Number of Rows	Contact Finish	Card Type	Contact Material	Read Out	Color	Pitch	Contact Finish Thickness	Mounting Type	Gender	Contact Type	Card Thickness (Min)	Card Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Material - Insulation	Termination Rows	Flange Feature	Flange Feature Diameter	Features
EDAC Inc. 305-064-500-201	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Free Hanging (In-Line)	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder Eyelet(s)	Polyester Thermoplastic	2 rows
EDAC Inc. 305-064-521-568	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Panel Mount Through Hole	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-064-500-502	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Panel Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder Eyelet(s)	Polyester Thermoplastic	2 rows	Flush Mount Top Opening Unthreaded	0.128 in
EDAC Inc. 305-064-500-204	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Panel Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder Eyelet(s)	Polyester Thermoplastic	2 rows	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 305-064-520-203	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Panel Mount Through Hole	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 305-064-555-502	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Board Edge Straddle Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	Flush Mount Top Opening Unthreaded	0.128 in	Card Extender
EDAC Inc. 305-064-555-202	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Board Edge Straddle Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	Flush Mount Top Opening Unthreaded	0.128 in	Card Extender
EDAC Inc. 305-064-555-207	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Board Edge Straddle Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	Flush Mount M3 Threaded Insert Top Opening		Card Extender
EDAC Inc. 305-064-556-203	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Board Edge Straddle Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder	Polyester Thermoplastic	2 rows	Floating Bobbin Flush Mount	0.116 in	Card Extender
EDAC Inc. 305-064-500-568	32 64	2	Gold	Dual Edge Non Specified	Copper Alloy	Dual	Green	0.156 in	10 Ąin	Panel Mount	Female	Semi Bellows	0.054 in	0.07 in	-40 °C	105 °C	Solder Eyelet(s)	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

305-064-500-201 | Datasheet
