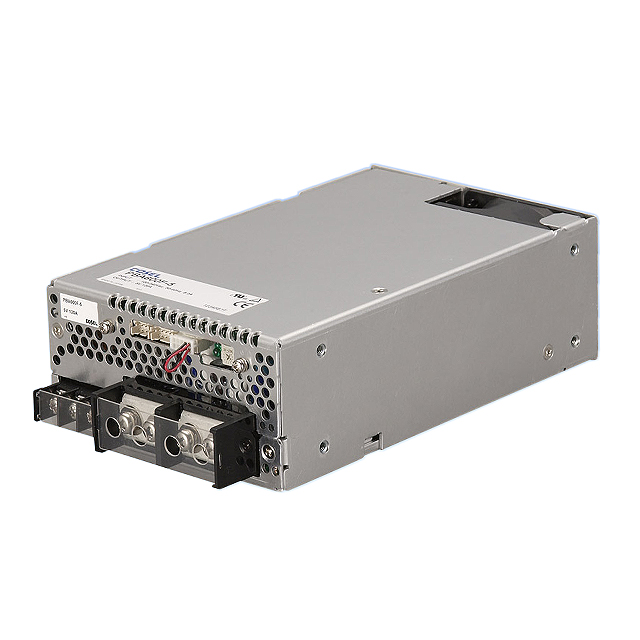

PBA600F-12

LTB

Cosel USA, Inc.

AC/DC POWER SUPPLY SINGLE-OUT 12V 53A 636W

PBA600F-12

LTB

Cosel USA, Inc.

AC/DC POWER SUPPLY SINGLE-OUT 12V 53A 636W

Description Specifications Series Pricing CAD Documents

Description

General part information

PBA600 Series

Switching Power Supplies

Technical Specifications

Parameters and characteristics for this part

Specification	PBA600F-12

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CE
Current - Output 1	53 A
Efficiency	82 %
Features	Universal Input, DC Input Capable
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	600 W
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Output 1	12 V

PBA600 Series

Switching Power Supplies

...

Part	Minimum Load Required	Efficiency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Isolation	Mounting Type	Applications	Current - Output 1	Type	Voltage - Output 1	Features	Power (Watts)
Cosel USA, Inc. PBA600F-7R5-CF3	No	79 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	80 A	Enclosed	7.5 V
Cosel USA, Inc. PBA600F-3R3-F4	No	72 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	120 A	Enclosed	3.3 V
Cosel USA, Inc. PBA600F-7R5	No	79 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	80 A	Enclosed	7.5 V
Cosel USA, Inc. PBA600F-3R3-C	No	72 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	120 A	Enclosed	3.3 V
Cosel USA, Inc. PBA600F-48-U	No	83 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	13 A	Enclosed	48 V
Cosel USA, Inc. PBA600F-3R3-G	No	72 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	120 A	Enclosed	3.3 V
Cosel USA, Inc. PBA600F-3R3-U	No	72 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	120 A	Enclosed	3.3 V
Cosel USA, Inc. PBA600F-15-CF3	No	82 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	43 A	Enclosed	15 V
Cosel USA, Inc. PBA600F-12	No	82 %				CE cURus TUV			1	85 VAC	264 V		Chassis Mount	ITE (Commercial)	53 A	Enclosed	12 V	DC Input Capable Universal Input	600 W
Cosel USA, Inc. PBA600F-7R5-F4	No	79 %	7.48 in	2.4 in	4.72 in	CE cURus TUV	70 °C	-20 °C	1	85 VAC	264 V	3 kV	Chassis Mount	ITE (Commercial)	80 A	Enclosed	7.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PBA600F-12 | Datasheet
