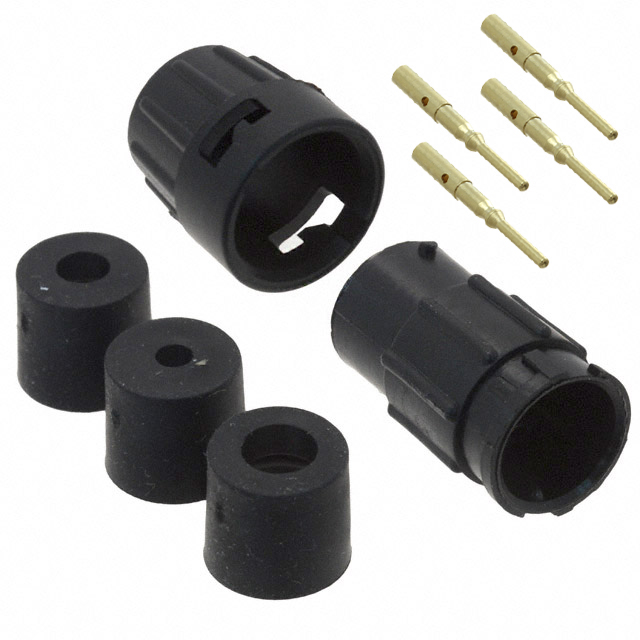

8280-4PG-3DC
ActiveConxall/Switchcraft
CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8280-4PG-3DC
ActiveConxall/Switchcraft
CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8280-4PG-3DC | 8280-4PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.83 - 5.33 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.19 - 0.21 in |
| Cable Opening | - | 0.21 - 0.23 in |
| Cable Opening | - | 0.16 - 0.18 in |
| Cable Opening | - | 0.18 - 0.2 in |
| Cable Opening | - | 4.06 - 4.57 mm |
| Cable Opening | - | 4.57 - 5.08 mm |
| Cable Opening | - | 5.33 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
8280-4PG Series
CONN RCPT MALE 4POS GOLD CRIMP
| Part | Color | Voltage Rating | Features | Backshell Material, Plating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Orientation | Primary Material | Number of Positions | Connector Type | Contact Finish - Mating | Contact Material | Current Rating (Amps) | Termination | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Shielding | Applications | Fastening Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8280-4PG-321 | Black | 600 V | Backshell | Nylon, Polyamide (PA) | Free Hanging (In-Line) | -40 °C | 115 °C | Weathertight | Keyed | Plastic | 4 | Male Pins, Receptacle | Gold | Brass | Varies by Wire Gauge | Crimp | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | Unshielded | Automotive, Communication Systems, Instrumentation | Bayonet Lock | |||||
Conxall/Switchcraft 8280-4PG-3DC | Black | 600 V | Backshell | Nylon, Polyamide (PA) | Free Hanging (In-Line) | -40 °C | 115 °C | Weathertight | Keyed | Plastic | 4 | Male Pins, Receptacle | Gold | Brass | Varies by Wire Gauge | Crimp | Unshielded | Automotive, Communication Systems, Instrumentation | Bayonet Lock | |||||||||
Conxall/Switchcraft 8280-4PG-516 | Black | 600 V | Backshell | Nylon, Polyamide (PA) | Free Hanging (In-Line) | -40 °C | 115 °C | Weathertight | Keyed | Plastic | 4 | Male Pins, Receptacle | Gold | Brass | Varies by Wire Gauge | Crimp | Unshielded | Automotive, Communication Systems, Instrumentation | Bayonet Lock | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | |||||
Conxall/Switchcraft 8280-4PG-318 | Black | 600 V | Backshell | Nylon, Polyamide (PA) | Free Hanging (In-Line) | -40 °C | 115 °C | Weathertight | Keyed | Plastic | 4 | Male Pins, Receptacle | Gold | Brass | Varies by Wire Gauge | Crimp | Unshielded | Automotive, Communication Systems, Instrumentation | Bayonet Lock | 0.18 in | 0.2 in | 4.57 mm | 5.08 mm | |||||
Conxall/Switchcraft 8280-4PG-519 | Black | 600 V | Backshell | Nylon, Polyamide (PA) | Free Hanging (In-Line) | -40 °C | 115 °C | Weathertight | Keyed | Plastic | 4 | Male Pins, Receptacle | Gold | Brass | Varies by Wire Gauge | Crimp | 4.83 mm | 0.19 in | 0.21 in | Unshielded | Automotive, Communication Systems, Instrumentation | Bayonet Lock | 5.33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.69 | |
| 10 | $ 5.15 | |||
| 25 | $ 4.86 | |||
| 50 | $ 4.74 | |||
| 100 | $ 4.51 | |||
| 300 | $ 4.17 | |||
Description
General part information
8280-4PG Series
4 Position Circular Connector Receptacle, Male Pins Crimp
