Specification	T 3325 055

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Coupling Nut, Cable Clamp
Housing Color	Black, Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-4
Shielding	Unshielded
Type	For Female Sockets

T 3325 Series

Part	Termination	Mounting Type	Orientation	Cable Opening (Min)	Cable Opening (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Voltage Rating	Current Rating	Shell Material	Color	Shell Finish	Material Flammability Rating	Ingress Protection	Connector Type	Features	Applications	Shielding	Primary Material	Insert Material	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Housing Color	Note	Type	Contact Shape	Contact Type	Contact Size
McGill Microwave Systems T 3325 518	Solder Cup	Free Hanging (In-Line)	Keyed	0.157 in	0.236 in	100 °C	-40 °C	4	250 V	10 A	Zinc Die Cast	Black	Nickel	UL94 V-0	IP40	Female Sockets Plug	Backshell Cable Clamp Coupling Nut Strain Relief	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Unshielded	Metal	Thermoplastic	Gold	M16-4	Bayonet Lock

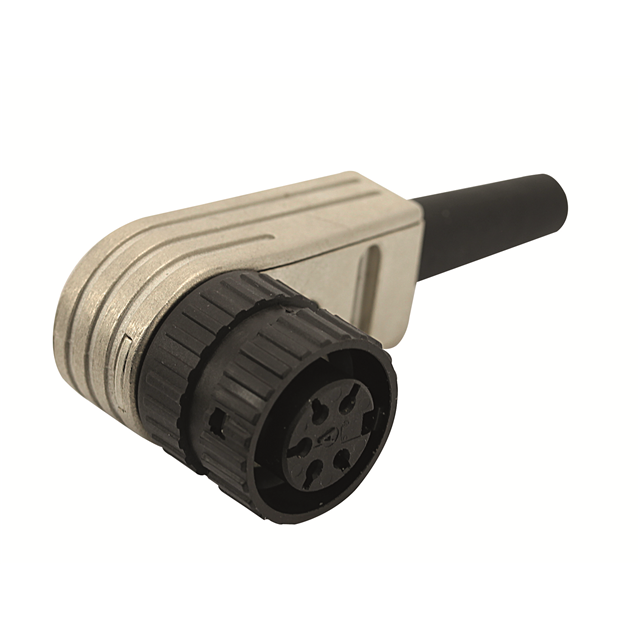

McGill Microwave Systems T 3325 055		Free Hanging (In-Line) Right Angle	Keyed			100 °C	-40 °C	4			Die Cast		Nickel	UL94 V-0	IP40	Plug Housing	Backshell Cable Clamp Coupling Nut Strain Relief		Unshielded		Thermoplastic		M16-4	Bayonet Lock	Black Silver	Contacts Not Included	For Female Sockets	Circular	Crimp	1.5 mm

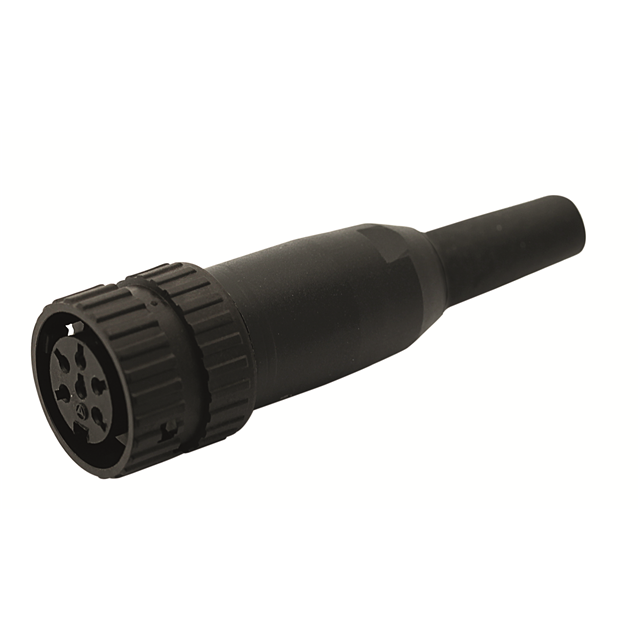

McGill Microwave Systems T 3325 951		Free Hanging (In-Line)	Keyed			100 °C	-40 °C	4			Thermoplastic			UL94 V-0	IP40	Plug Housing	Backshell Cable Clamp Coupling Nut Strain Relief		Unshielded		Thermoplastic		M16-4	Bayonet Lock	Black	Contacts Not Included	For Female Sockets	Circular	Crimp	1.5 mm
