AB-GES-S04124W30NN1

Obsolete

American Bright Optoelectronics Corporation

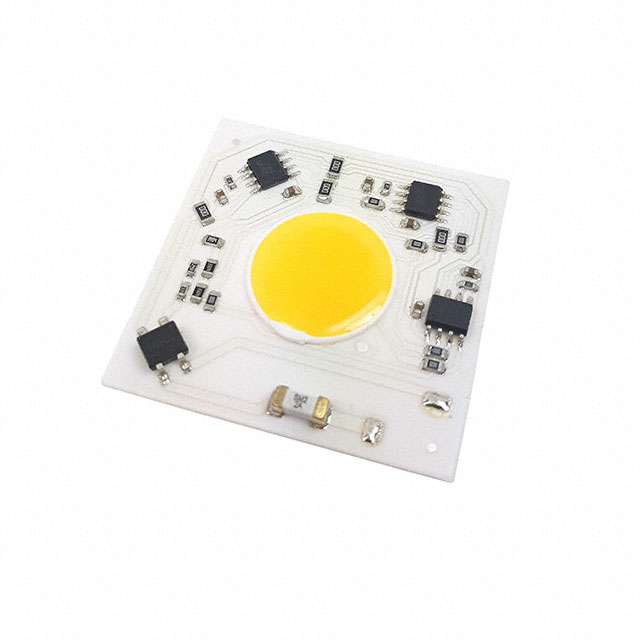

LED ENG AB-GES WH SQUARE 3000K

Deep-Dive with AI

Search across all available documentation for this part.

AB-GES-S04124W30NN1

Obsolete

American Bright Optoelectronics Corporation

LED ENG AB-GES WH SQUARE 3000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AB-GES Series

LED Lighting COBs Engines Modules LED Engine AB-GES White, Warm Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-GES-S04124W30NN1	AB-GES Series

CCT (K)	3000 K	3000 - 6500 K
Color	White, Warm	Neutral, White, Warm, Cool
Configuration	Square	Linear Light Strip, Round, Square, Plug and Play
CRI (Color Rendering Index)	80	80
Height [z]	1.6 mm	1.6 - 18.7 mm
Lens Type	Flat	Flat, Tubular
Light Emitting Surface (LES) [diameter]	18.8 mm	18.8 mm
Luminous Flux @ Current/Temperature	2100 lm	280 - 2550 lm
Size / Dimension	-	25.7 mm
Size / Dimension [x]	40 mm	40 - 569 mm
Size / Dimension [y]	40 mm	2.7 - 41.6 mm
Type	LED Engine	LED Engine, LED Module
Voltage - Forward (Vf) (Typ)	120 VAC	120 - 230 VAC

AB-GES Series

LED ENG AB-GES WH LNR STRP 4000K

Part	Color	Lens Type	CCT (K)	Type	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Size / Dimension [diameter]	Height [z]	Light Emitting Surface (LES) [diameter]
American Bright Optoelectronics Corporation AB-GES-L15106W404T1	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	630 lm	24 mm	150 mm	80
American Bright Optoelectronics Corporation AB-GES-L08103W404T1	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	280 lm	24 mm	76 mm	80
American Bright Optoelectronics Corporation AB-GES-C02104W30NN2	Warm, White	Flat	3000 K	LED Engine	120 VAC	Round	300 lm			80	25.7 mm
American Bright Optoelectronics Corporation AB-GES-S04124W30NN1	Warm, White	Flat	3000 K	LED Engine	120 VAC	Square	2100 lm	40 mm	40 mm	80		1.6 mm	18.8 mm
American Bright Optoelectronics Corporation AB-GES-L54108W304N3	Warm, White	Flat	3000 K	LED Engine	120 VAC	Linear Light Strip	880 lm	20 mm	542 mm	80
American Bright Optoelectronics Corporation AB-GES-P28212W30BFT2	Warm, White	Tubular	3000 K	LED Engine	230 VAC	Linear Light Strip, Plug and Play	1000 lm	2.7 mm	304.8 mm	80		17.5 mm
American Bright Optoelectronics Corporation AB-GES-L27104W404N3	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	500 lm	20 mm	271 mm	80
American Bright Optoelectronics Corporation AB-GES-F56124W65BFT1	Cool, White	Flat	6500 K	LED Module	120 VAC	Linear Light Strip, Plug and Play	2550 lm	41.6 mm	569 mm	80		18.7 mm
American Bright Optoelectronics Corporation AB-GES-L28112W404T2	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	1400 lm	24 mm	280 mm	80
American Bright Optoelectronics Corporation AB-GES-L27204W404N3	Neutral, White	Flat	4000 K	LED Engine	230 VAC	Linear Light Strip	500 lm	20 mm	271 mm	80
