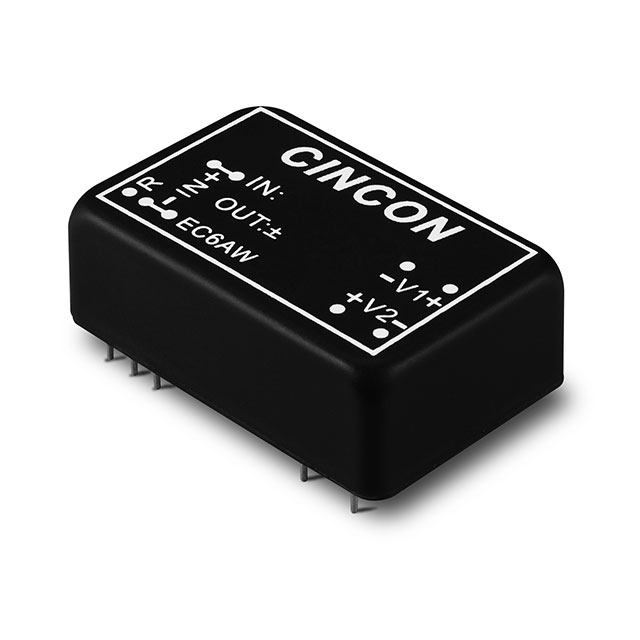

Specification	EC6AW-24D05

Applications	Railway, ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max)	800 mA
Efficiency	82 %
Features	UVLO, Remote On/Off, OVP, SCP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	9 Leads
Package Name	24-DIP Module
Power (Watts)	8 W
Size / Dimension Height	0.4 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Standard Number	60950-1, 50155
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

EC6AW Series

Part	Efficiency	Type	Number of Outputs	Current - Output (Max)	Voltage - Isolation	Package Leads	Package Name	Control Features	Features	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Standard Number	Power (Watts)	Voltage - Input (Min)	Voltage - Output 1	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (Max)	Approval Agency	Applications	Voltage - Output 2
Cincon Electronics Co. LTD EC6AW-48S05	83 %	Isolated Module	1	1.6 A	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	8 W	18 V	5 V	0.4 in	1.25 in	0.8 in	75 V	CE	ITE (Commercial) Railway
Cincon Electronics Co. LTD EC6AW-24D05	82 %	Isolated Module	2	800 mA	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	8 W	9 V	5 V	0.4 in	1.25 in	0.8 in	36 V	CE	ITE (Commercial) Railway	-5 V
Cincon Electronics Co. LTD EC6AW-48S15	86 %	Isolated Module	1	530 mA	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	8 W	18 V	15 V	0.4 in	1.25 in	0.8 in	75 V	CE	ITE (Commercial) Railway
Cincon Electronics Co. LTD EC6AW-24S33	80 %	Isolated Module	1	2 A	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	6.6 W	9 V	3.3 V	0.4 in	1.25 in	0.8 in	36 V	CE	ITE (Commercial) Railway
Cincon Electronics Co. LTD EC6AW-110D15	87.5 %	Isolated Module	2	333 mA	3 kV	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	10 W	43 V	15 V	0.5 in	1.25 in	0.8 in	160 VDC	CE cURus	ITE (Commercial) Railway	-15 V
Cincon Electronics Co. LTD EC6AW-110S05	87 %	Isolated Module	1	2 A	3 kV	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	10 W	43 V	5 V	0.5 in	1.25 in	0.8 in	160 VDC	CE cURus	ITE (Commercial) Railway
Cincon Electronics Co. LTD EC6AW-24S05	82 %	Isolated Module	1	1.6 A	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	8 W	9 V	5 V	0.4 in	1.25 in	0.8 in	36 V	CE	ITE (Commercial) Railway
Cincon Electronics Co. LTD EC6AW-24D15	85 %	Isolated Module	2	265 mA	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	8 W	9 V	15 V	0.4 in	1.25 in	0.8 in	36 V	CE	ITE (Commercial) Railway	-15 V
Cincon Electronics Co. LTD EC6AW-110D05	85 %	Isolated Module	2	1 A	3 kV	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	10 W	43 V	5 V	0.5 in	1.25 in	0.8 in	160 VDC	CE cURus	ITE (Commercial) Railway	-5 V
Cincon Electronics Co. LTD EC6AW-48S33	80 %	Isolated Module	1	2 A	1500 Vrns	9 Leads	24-DIP Module	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Through Hole	85 °C	-40 °C	50155 60950-1	6.6 W	18 V	3.3 V	0.4 in	1.25 in	0.8 in	75 V	CE	ITE (Commercial) Railway

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet-EC6AW.pdf

EC6AW-24D05 | Datasheet
