51-252.0268

Active

EAO

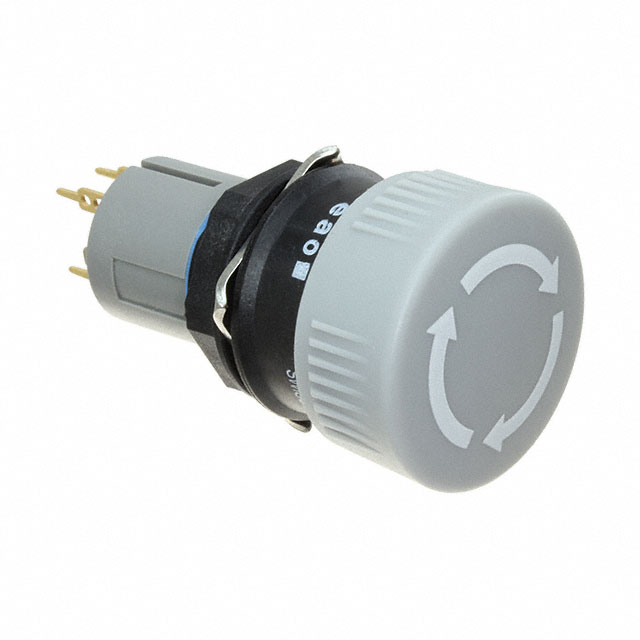

SW E-STOP TWIST RESET 100MA 42V

Search across all available documentation for this part.

Active

EAO

SW E-STOP TWIST RESET 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	51-252.0268

Circuit	DPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	PC Pin, Solder Lug
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SW E-STOP TWIST RESET 100MA 42V

Part	Ingress Protection	Circuit	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Reset Operation
EAO 51-252.0268	IP65 - Dust Tight, Water Resistant	DPST-NC	Panel Mount, Front	PC Pin, Solder Lug	55 °C	-25 °C	42 V	42 V	On-Off	16 mm	100 mA	Twist

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SW E-STOP TWIST RESET 100MA 42V

Technical documentation and resources
