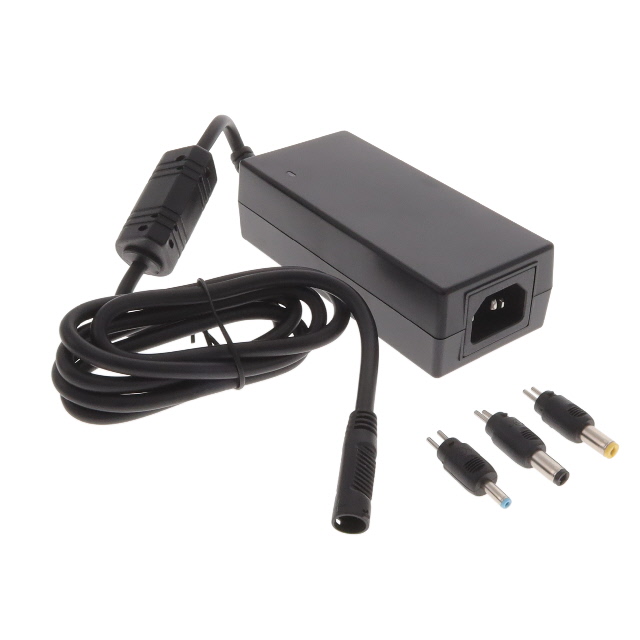

Specification	TR9CE5410T00CIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	cETLus, FCC, S-Mark, CE, PSE, LPS, CB, ETL, EAC, UKRSepro
Cord Length	47.2 in
Current - Output (Max)	5.41 A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	150 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	2.1mm x 5.5mm, (1.3mm x 3.5mm, Barrel Plug Kit, 2.5mm x 5.5mm)
Polarization	Negative Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension Height	1.35 in
Size / Dimension Length	4.63 in
Size / Dimension Width	2.11 in
Standard Number	60601-1-11, 62368-1, 60601-1-2
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	12 V

TR9CE5410 Series

Part	Polarization	Cord Length	Form	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Applications	Approval Agency	Voltage - Output	Input Connector	Efficiency	Power (Watts)	Input Type	Region Utilized	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	No Load Power Consumption (Max)	Standard Number	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
GlobTek, Inc. TR9CE5410CCPCIMR6B	Positive Center	47.2 in	Desktop (Class I)	2.1 mm	Barrel Plug	11 mm	5.5 mm	40 °C	-20 °C	5.41 A	ITE (Commercial) Medical	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro	12 V	IEC 320-C14	CoC Tier 2 Level VI	65 W	Cord (Sold Separately)	International	90 V	264 V	150 mW	60601-1-11 60601-1-2 62368-1	2.11 in	1.35 in	4.63 in
GlobTek, Inc. TR9CE5410T00CIMR6B	Negative Center	47.2 in	Desktop (Class I)		(1.3mm x 3.5mm 2.1mm x 5.5mm 2.5mm x 5.5mm) Barrel Plug Kit			40 °C	-20 °C	5.41 A	ITE (Commercial) Medical	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro	12 V	IEC 320-C14	CoC Tier 2 Level VI	65 W	Cord (Sold Separately)	International	90 V	264 V	150 mW	60601-1-11 60601-1-2 62368-1	2.11 in	1.35 in	4.63 in
GlobTek, Inc. TR9CE5410LCPCIMR6B	Positive Center	47.2 in	Desktop (Class I)	2.5 mm	Barrel Plug	11 mm	5.5 mm	40 °C	-20 °C	5.41 A	ITE (Commercial) Medical	CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro	12 V	IEC 320-C14	CoC Tier 2 Level VI	65 W	Cord (Sold Separately)	International	90 V	264 V	150 mW	60601-1-11 60601-1-2 62368-1	2.11 in	1.35 in	4.63 in
