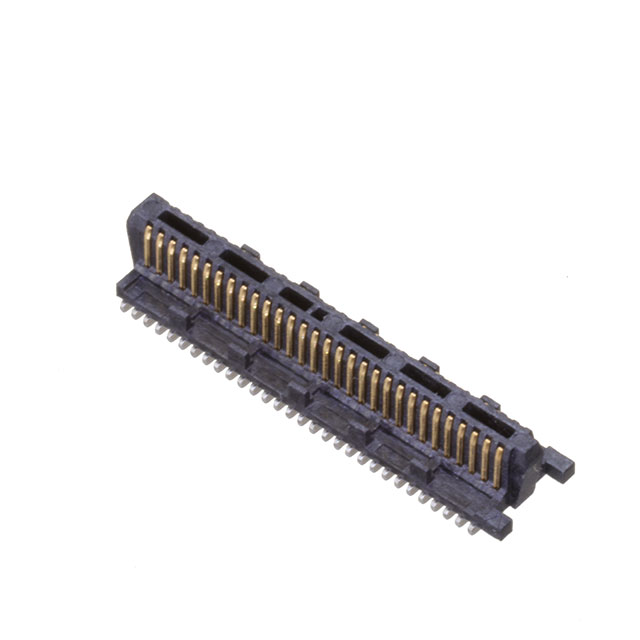

ST5-30-1.00-L-D-P-TR
ActiveSamtec Inc.
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ST5-30-1.00-L-D-P-TR
ActiveSamtec Inc.
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST5-30-1.00-L-D-P-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place |
| Height Above Board | 3.07 mm |
| Height Above Board | 0.121 in |
| Mated Stacking Heights | 4 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.92 | |
| 50 | $ 3.59 | |||
| 100 | $ 3.37 | |||
| 250 | $ 3.04 | |||
| 500 | $ 2.95 | |||
| Digi-Reel® | 1 | $ 3.92 | ||
| 50 | $ 3.59 | |||
| 100 | $ 3.37 | |||
| 250 | $ 3.04 | |||
| 500 | $ 2.95 | |||
| Tape & Reel (TR) | 1200 | $ 2.47 | ||
| 3600 | $ 2.19 | |||
Description
General part information
ST5-30 Series
60 Position Connector Header, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
