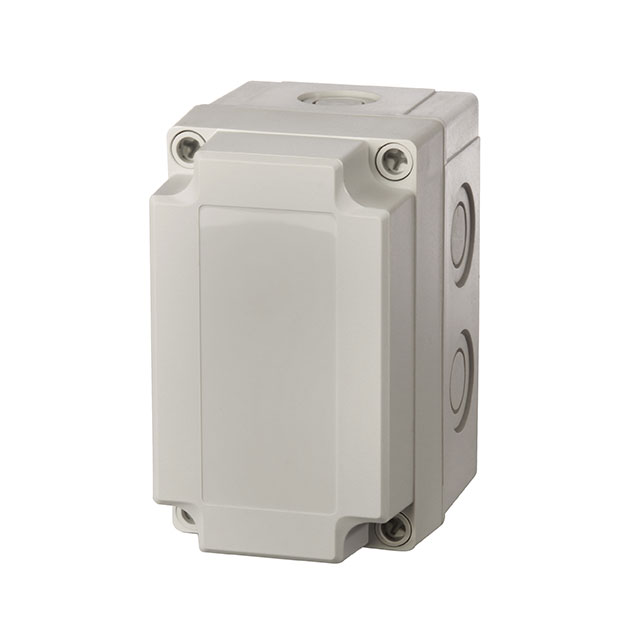

UL PCM 200/125 XG

Active

FIBOX Enclosures

BOX PLAS LGT GRY 9.68"L X 7.09"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLAS LGT GRY 9.68"L X 7.09"W

Technical Specifications

Parameters and characteristics for this part

Specification	UL PCM 200/125 XG

Area (L x W)	443 cm²
Area (L x W)	68.6 in²
Color	Light Gray
Container Type	Box
Design	Cover Included
Height [z]	124.46 mm
Height [z]	124.46 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL 746C 5
Ratings	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6
Size / Dimension [x]	9.68 in
Size / Dimension [x]	245.87 mm
Size / Dimension [y]	180.09 mm
Size / Dimension [y]	7.09 "

BOX PLAS LGT GRY 9.68"L X 7.09"W

Part	Design	Color	Material Flammability Rating	Area (L x W)	Area (L x W)	Material	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Ratings
FIBOX Enclosures UL PCM 200/125 XG	Cover Included	Light Gray	UL 746C 5	443 cm²	68.6 in²	Plastic, Polycarbonate	124.46 mm	124.46 mm	180.09 mm	7.09 "	9.68 in	245.87 mm	Box	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Light Gray Cover Included 9.680" L x 7.090" W (245.87mm x 180.09mm) X 4.900" (124.46mm)

Technical documentation and resources

No documents available
