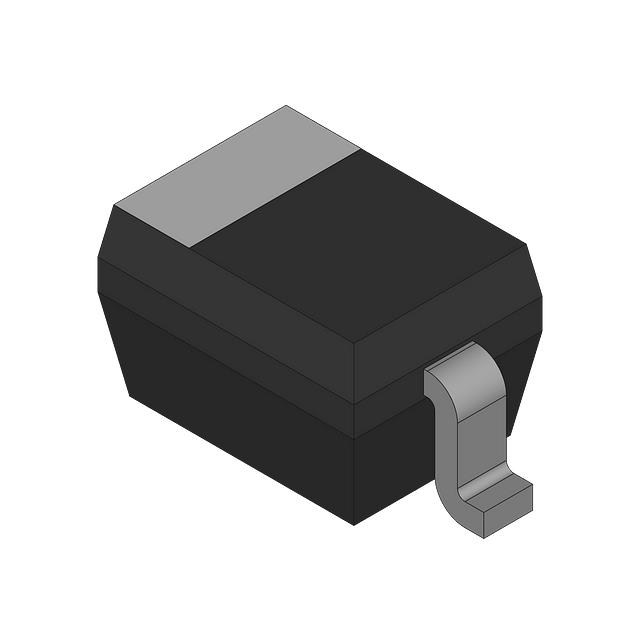

1PS76SB70/DG/B2115

Active

NXP USA Inc.

RECTIFIER DIODE

Search across all available documentation for this part.

Active

NXP USA Inc.

RECTIFIER DIODE

Technical Specifications

Parameters and characteristics for this part

Specification	1PS76SB70/DG/B2115

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	70 mA
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 ¯C
Package / Case	SOD-323, SC-76
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If	1 V

RECTIFIER DIODE

Part	Current - Average Rectified (Io)	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F
NXP USA Inc. 1PS76SB70/DG/B2115	70 mA	Surface Mount	Schottky	10 µA	SOD-323	150 ¯C	1 V	Any Speed	200 mA	SC-76, SOD-323	70 V	2 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 70 V 70mA Surface Mount SOD-323
