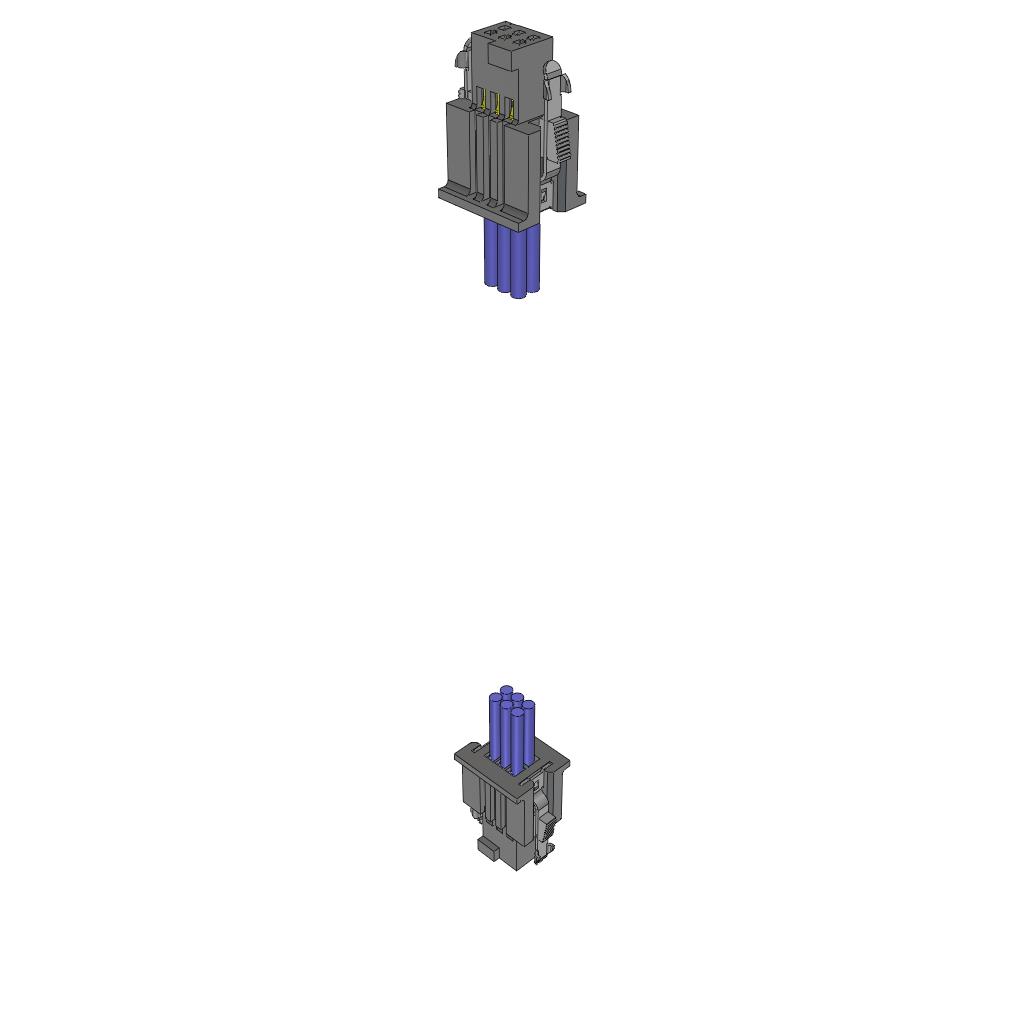

SFSD-03-28-G-24.00-DR-NUS

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 SFSD-02-28-G-06.00-D-NDX Datasheet 02 +2

SFSD-03-28-G-24.00-DR-NUS

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 SFSD-02-28-G-06.00-D-NDX Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSD-03-28-G-24.00-DR-NUS

Cable Termination	Crimp
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Latch Lock, Polarizing Key
Length [x]	2 '
Length [x]	609.6 mm
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

SFSD-03 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Contact Finish	Pitch - Connector	Pitch - Connector	Length	Length	Length	Shielding	Features	Cable Termination	Number of Rows	Length [x]	Length [x]	Length [x]	Length	Color
Samtec Inc. SFSD-03-30-G-06.00-DR-NDX	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm	152.4 mm	6 "	0.5 '	Unshielded	Latch Lock Polarizing Key	Crimp	2
Samtec Inc. SFSD-03-28-G-06.00-SR	10 Áin	0.25 Ám	Socket to Individual Wire Leads	6	Gold	0.05 in	1.27 mm	152.4 mm	6 "	0.5 '	Unshielded	Latch Lock Polarizing Key	Crimp	2
Samtec Inc. SFSD-03-30-G-06.00-SR	10 Áin	0.25 Ám	Socket to Individual Wire Leads	6	Gold	0.05 in	1.27 mm	152.4 mm	6 "	0.5 '	Unshielded	Latch Lock Polarizing Key	Crimp	2
Samtec Inc. SFSD-03-28-G-24.00-DR-NUS	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm				Unshielded	Latch Lock Polarizing Key	Crimp	2	2 '	609.6 mm
Samtec Inc. SFSD-03-28-G-05.32-DR-NDX	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm				Unshielded	Latch Lock Polarizing Key	Crimp	2	0.443 ft	135.13 mm	5.32 in
Samtec Inc. SFSD-03-28-G-05.00-SR	10 Áin	0.25 Ám	Socket to Individual Wire Leads	6	Gold	0.05 in	1.27 mm				Unshielded	Latch Lock Polarizing Key	Crimp	2	0.417 '	127 mm	5 "
Samtec Inc. SFSD-03-28-G-03.25-D-NDS	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm				Unshielded	Polarizing Key	Crimp	2	0.271 ft	82.55 mm	3.25 in
Samtec Inc. SFSD-03-28C-G-10.00-DR-NUX	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm	254 mm	10 in		Unshielded	Latch Lock Polarizing Key	Crimp	2				0.833 ft	Individual Multiple
Samtec Inc. SFSD-03-28-G-08.66-DR-NUS	10 Áin	0.25 Ám	Socket to Socket	6	Gold	0.05 in	1.27 mm	220 mm	8.66 in		Unshielded	Latch Lock Polarizing Key	Crimp	2				0.722 ft
Samtec Inc. SFSD-03-28-G-05.00-S	10 Áin	0.25 Ám	Socket to Individual Wire Leads	6	Gold	0.05 in	1.27 mm				Unshielded	Polarizing Key	Crimp	2	0.417 '	127 mm	5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.29

Description

General part information

SFSD-03 Series

6 Position Cable Assembly Rectangular Socket to Socket 2.00' (609.60mm)

Documents

Technical documentation and resources

SFSD Series Other Related Documents 03

SFSD-02-28-G-06.00-D-NDX Datasheet 02

Datasheet

.050" Tiger Eye™ Double Row Discrete Wire Cable Assembly, Terminal

Datasheet
