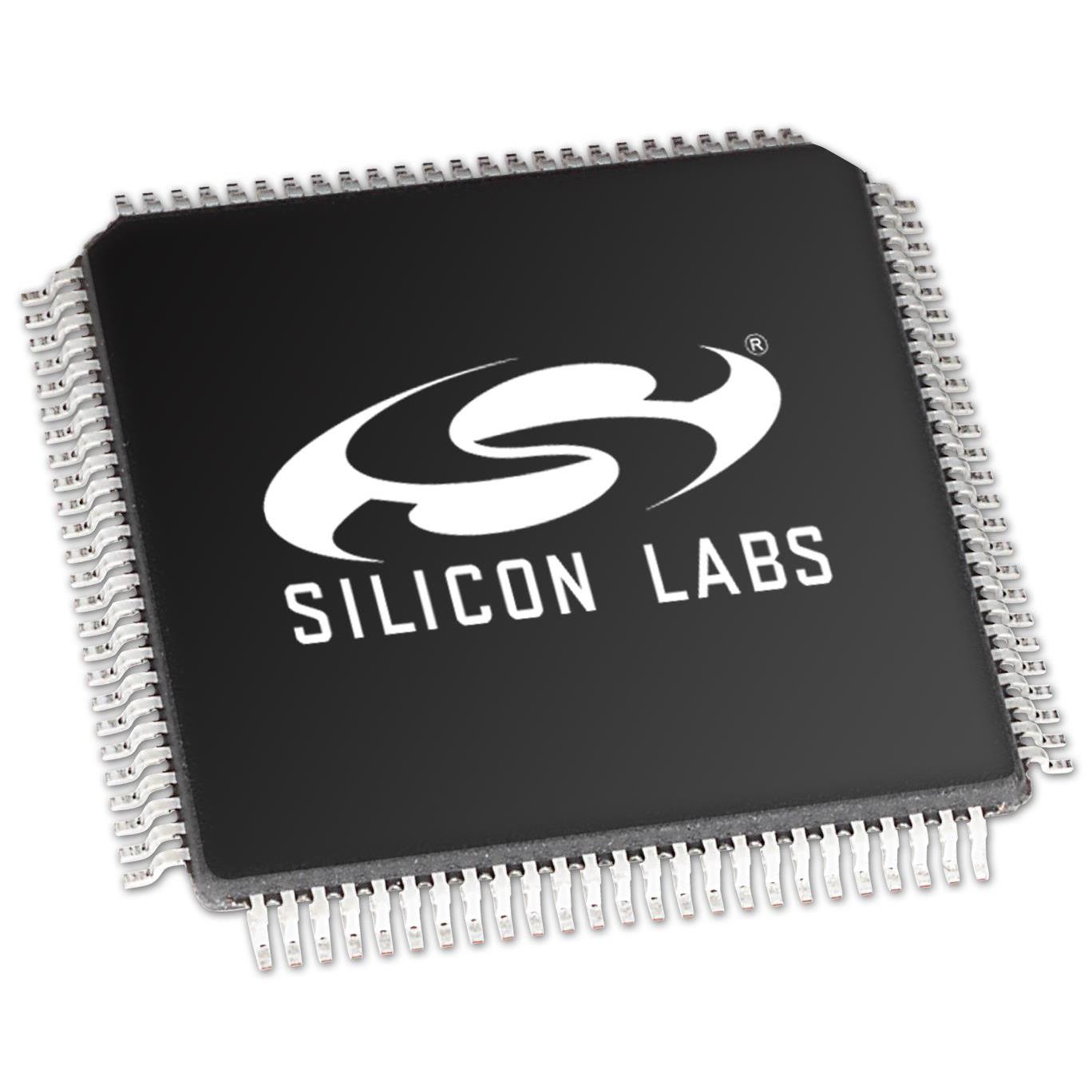

EFM32GG12B830F512GQ100-AR

Active

Silicon Labs

IC MCU 32BIT 512KB FLASH 100TQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A-00000450 Security Advisory +2

EFM32GG12B830F512GQ100-AR

Active

Silicon Labs

IC MCU 32BIT 512KB FLASH 100TQFP

Deep-Dive with AI

DocumentsDatasheet A-00000450 Security Advisory +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32GG12B830F512GQ100-AR

Connectivity	QSPI, UART/USART, CANbus, USB, EBI/EMI, LINbus, PDM, SmartCard, I2C, IrDA, MMC/SD/SDIO, SPI
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Data Converters	A/D 16x12b SAR, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	81
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	100-TQFP
Peripherals	WDT, PWM, LCD, POR, Brown-out Detect/Reset, DMA
Program Memory Size	512 KB
Program Memory Type	FLASH
RAM Size	192 K
Speed	72 MHz
Supplier Device Package	100-TQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

EFM32GG12 Series

Part	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Speed	Oscillator Type	Program Memory Type	RAM Size	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Connectivity	Core Size	Data Converters	Core Processor	Peripherals
Silicon Labs EFM32GG12B410F1024GM64-A	1 MB	85 °C	-40 °C	Surface Mount	64-VFQFN Exposed Pad	72 MHz	Internal	FLASH	192 K	64-QFN (9x9)	3.8 V	1.8 V	53	CANbus EBI/EMI I2C IrDA LINbus MMC/SD/SDIO PDM QSPI SmartCard SPI UART/USART USB	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B430F512IM64-A	512 KB	125 °C	-40 °C	Surface Mount	64-VFQFN Exposed Pad	72 MHz	Internal	FLASH	192 K	64-QFN (9x9)	3.8 V	1.8 V	53	CANbus EBI/EMI I2C IrDA LINbus MMC/SD/SDIO PDM QSPI SmartCard SPI UART/USART USB	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B430F512GQ64-AR	512 KB	85 °C	-40 °C	Surface Mount	64-TQFP	72 MHz	Internal	FLASH	192 K	64-TQFP (10x10)	3.8 V	1.8 V	50 I/O	CANbus EBI/EMI I2C IrDA LINbus MMC/SD/SDIO PDM QSPI SmartCard SPI UART/USART USB	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B830F512GQ100-AR	512 KB	85 °C	-40 °C	Surface Mount	100-TQFP	72 MHz	Internal	FLASH	192 K	100-TQFP (14x14)	3.8 V	1.8 V	81	CANbus EBI/EMI I2C IrDA LINbus MMC/SD/SDIO PDM QSPI SmartCard SPI UART/USART USB	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B530F512IQ64-A	512 KB	125 °C	-40 °C	Surface Mount	64-TQFP	72 MHz	Internal	FLASH	192 K	64-TQFP (10x10)	3.8 V	1.8 V	51	CANbus EBI/EMI I2C IrDA LINbus PDM SmartCard SPI UART/USART	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B530F512GQ100-A	512 KB	85 °C	-40 °C	Surface Mount	100-TQFP	72 MHz	Internal	FLASH	192 K	100-TQFP (14x14)	3.8 V	1.8 V	81	CANbus EBI/EMI I2C IrDA LINbus PDM SmartCard SPI UART/USART	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B530F512IL120-AR	512 KB	125 °C	-40 °C	Surface Mount	120-VFBGA	72 MHz	Internal	FLASH	192 K	120-BGA (7x7)	3.8 V	1.8 V	95 I/O	CANbus EBI/EMI I2C IrDA LINbus PDM SmartCard SPI UART/USART	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B130F512IM64-AR	512 KB	125 °C	-40 °C	Surface Mount	64-VFQFN Exposed Pad	72 MHz	Internal	FLASH	192 K	64-QFN (9x9)	3.8 V	1.8 V	56	CANbus EBI/EMI I2C IrDA LINbus PDM SmartCard SPI UART/USART	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA POR PWM WDT
Silicon Labs EFM32GG12B410F1024GL112-AR	1 MB	85 °C	-40 °C	Surface Mount	112-LFBGA	72 MHz	Internal	FLASH	192 K	112-BGA (10x10)	3.8 V	1.8 V	87	CANbus EBI/EMI I2C IrDA LINbus MMC/SD/SDIO PDM QSPI SmartCard SPI UART/USART USB	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT
Silicon Labs EFM32GG12B330F512GL112-AR	512 KB	85 °C	-40 °C	Surface Mount	112-LFBGA	72 MHz	Internal	FLASH	192 K	112-BGA (10x10)	3.8 V	1.8 V	90	CANbus EBI/EMI I2C IrDA LINbus PDM SmartCard SPI UART/USART	32-Bit Single-Core	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4	Brown-out Detect/Reset DMA LCD POR PWM WDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 7.29

Description

General part information

EFM32GG12 Series

ARM® Cortex®-M4 Giant Gecko S1 Microcontroller IC 32-Bit Single-Core 72MHz 512KB (512K x 8) FLASH 100-TQFP (14x14)

EFM32GG12B830F512GQ100-AR

Deep-Dive with AI

EFM32GG12B830F512GQ100-AR

Deep-Dive with AI

Technical Specifications

EFM32GG12 Series

Pricing

Description

EFM32GG12 Series

Documents

Datasheet

A-00000450 Security Advisory

A-00000442 Security Advisory

A-00000449 Security Advisory

EFM32GG12 Series
