Q-2C01J0003072i

Active

Amphenol Custom Cable

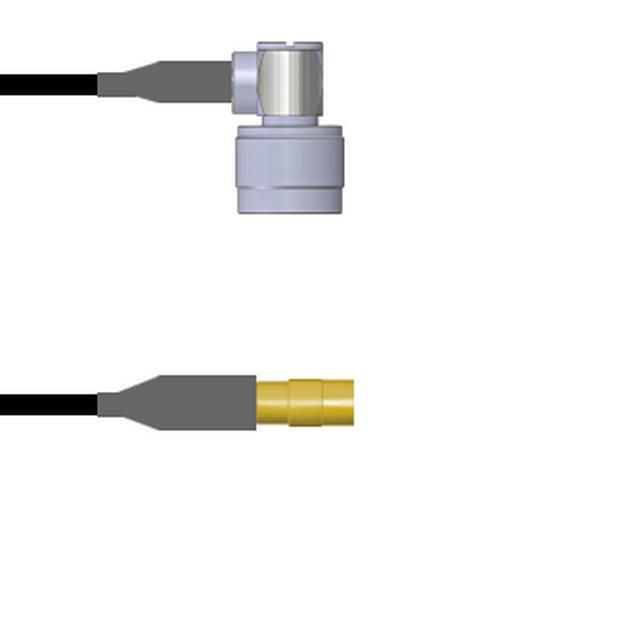

CBL ASSY MMCX-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C01J0003072i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C01J0003072i

1st Connector	MMCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2C01J0 Series

Part	1st Connector	1st Contact Gender	2nd Connector	Overall Impedance	Features	Color	Cable Type	1st Connector Mounting Type	Length	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	Style
Amphenol Custom Cable Q-2C01J0005001M	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Copper	RG-316	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0003084i	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Black	RG-174	Free Hanging (In-Line)	2.1 m	7 ft	84 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0003012i	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Black	RG-174	Free Hanging (In-Line)	304.8 mm		12 "	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0003072i	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Black	RG-174	Free Hanging (In-Line)	1.8 m	6 ft	72 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J00030.5M	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Black	RG-174	Free Hanging (In-Line)	50 cm		19.69 "	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0003003M	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Black	RG-174	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0005003M	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Copper	RG-316	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0005060i	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Copper	RG-316	Free Hanging (In-Line)	1.5 m	5 ft	5 '	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0005.75M	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Copper	RG-316	Free Hanging (In-Line)	750 mm		29.53 "	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type
Amphenol Custom Cable Q-2C01J0005003i	MMCX Jack	Female	N-Type Plug Right Angle	50 Ohms	Shielded	Copper	RG-316	Free Hanging (In-Line)	76.2 mm		3 in	Free Hanging (In-Line)	6000 MHz	Male	MMCX to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.91
		25	$ 80.32
		50	$ 78.73
		100	$ 77.14
		250	$ 75.54

Description

General part information

Q-2C01J0 Series

Cable Assembly Coaxial MMCX to N-Type RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
